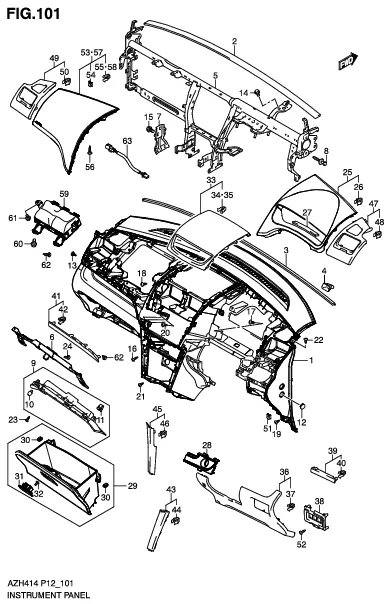

FIG.101 INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111-58M00-5PK	PANEL, INSTRUMENT MAIN	1	Rp3.533.500
2	73118-57L00-000	SEAL, INSTRUMENT PANEL	1	Rp141.000
3	73121-58M00-000	SILENCER, I/P TOP	1	Rp157.500
4	73123-51K00-000	SOCKET, I/P PIN	3	Rp43.000
5-1	73200-58M20-000	MEMBER, STEERING SUPPORT GL	1	Rp3.200.500	GL
5-2	73200-58M00-000	MEMBER, STEERING SUPPORT GLX	1	Rp3.200.500	GLX
6	73250-74L00-000 SUB: 73250B74L00N000	REINF, GLOVE BOX UPPER	1	Rp51.000
7	DISCONTINUE SUB: 73261-80J00-000	BRACE, STRG SUPPORT MEMBER	2	-
8	73291-50G20-000	BOLT, STRIG SUPPORT MEMBER SIDE	4	Rp42.500
9	73840-58M00-000	COVER, GLOVE BOX UPPER	1	Rp247.500
10	73461-54M00-000	•CUSHION, GLOVE BOX SIDE	2	Rp32.000
11	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
12	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, I/P SIDE (GRAY)	4	Rp9.000
13	09409-06322-5PK	CLIP (BLACK)	2	Rp19.000
14	01551-0816C-000	BOLT	1	Rp13.500
15	01551-0816C-000	BOLT	8	Rp13.500
16	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
17	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
18	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
19	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
20	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
21	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
22	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
23	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
24	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
25	73311-71L00-5PK	PANEL, INSTRUMENT CLUST(BLACK)	1	Rp499.500
26	09409-08349-000 SUB: 09409B08342N000	•CLIP	7	Rp4.500
27	73314-62J00-000	SEAL, I/P CLUSTER	1	Rp34.000
28-1	73831-71L00-5PK	COVER, DRVR OUTSIDE (BLACK) GL	1	Rp91.500	GL
28-2	73831-71L10-5PK	COVER, DRVR OUTSIDE (BLACK) GLX	1	Rp72.500	GLX
29	73049-58M11-5PK SUB: 73410-58M00-5PK	BOX, GLOVE (BLACK)	1	Rp962.500
30	73413-63J00-000	•CUSHION, GLOVE BOX LID	2	Rp33.000
31	73430-58M00-5PK	•LOCK, GLOVE BOX (BLACK)	1	Rp399.500
32	02142-0412A-000	•SCREW	2	Rp10.500
33	73800-71L00-GJL	GARNISH, I/P CENTER UPPER (BLACK/SILVER)	1	Rp420.000
34	09409-08349-000 SUB: 09409B08342N000	•CLIP	5	Rp4.500
35	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
36	73811-58M20-5PK	COVER, STEERING COLUMN HOLE (BLACK)	1	Rp358.000
37	09409-08349-000 SUB: 09409B08342N000	•CLIP	5	Rp4.500
38	73835-71L00-5PK	BEZEL, I/P SWITCH (BLACK)	1	Rp85.500
39	73851-68L00-ZML SUB: 73851B68L00NZML	ORNAMENT, I/P DRVR OUTSIDE (BLACK/SILVER)	1	Rp41.500
40	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
41	73852-58M00-ZML	ORNAMENT, I/P ASST OUTSIDE (BLACK/SILVER)	1	Rp105.000
42	09409-08349-000 SUB: 09409B08342N000	•CLIP	4	Rp4.500
43	73853-71L00-5PK	COVER, I/P CTR DRVR SIDE (GRAY)	1	Rp126.000
44	09409-08349-000 SUB: 09409B08342N000	•CLIP	3	Rp4.500
45	73854-71L00-5PK	COVER, I/P CTR ASST SIDE (GRAY)	1	Rp131.000
46	09409-08349-000 SUB: 09409B08342N000	•CLIP	3	Rp4.500
47	73871-74L10-5PK	GARNISH, I/P SIDE RH (BLACK)	1	Rp96.500
48	09409-08349-000 SUB: 09409B08342N000	•CLIP	3	Rp4.500
49	73872-58M10-5PK	GARNISH, I/P SIDE LH (BLACK)	1	Rp96.500
50	09409-08349-000 SUB: 09409B08342N000	•CLIP	3	Rp4.500
51	09148-05045-000	NUT	1	Rp4.000
52	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
53	73921-58M00-5PK	COVER, AIR BAG HOLE (BLACK) GL	1	Rp548.500	GL
54	09148-05045-000	•NUT GL	4	Rp4.000	GL
55	09409-08349-000 SUB: 09409B08342N000	•CLIP GL	9	Rp4.500	GL
56	03241-0512A-000 SUB: 03241B0512AN000	SCREWGL	4	Rp3.500	GL
57	73910-58M00-5PK SUB: 73910-71L00-5PK	DOOR ASSY, PASSENGER AIR BAG (BLACK) GLX	1	Rp623.500	GLX
58	09409-08349-000 SUB: 09409B08342N000	•CLIP GLX	9	Rp4.500	GLX
59	73920-58M00-000	HOUSING ASSY, PASSENGER AIR BAG GLX	1	Rp3.745.000	GLX
60	01551-0816C-000	BOLTGLX	2	Rp13.500	GLX
61	02162-0612A-000	SCREW GLX	2	Rp11.000	GLX
62	03241-0512A-000 SUB: 03241B0512AN000	SCREWGLX	2	Rp3.500	GLX
63	36691-68L00-000	WIRE, PASSENGER AIR BAG (OPT:SEE SERVICE MANUAL)	1	Rp240.500	OPT:SEE SERVICE MANUAL
