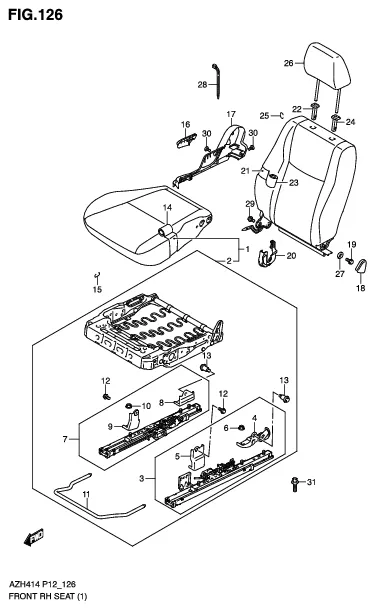

FIG.126 FRONT RH SEAT (GL)

No	No. Part	Description	Qty	Price Per Pcs
1	85105-58M10-000	CUSHION S/ASSY, FR RH	1	Rp11.051.000
2	85103-58M10-000	•FRAME ASSY, FR CUSH RH	1	-
3	86601-58M10-000	••ADJUSTER S/ASSY, INSIDE RH	1	Rp2.295.500
4	86712-75L00-000	•••RISER, RR INSIDE RH	1	Rp986.000
5	86721-75L00-000	•••RISER, LIFTER INSIDE RH	1	Rp986.000
6	08316-1010A-000 SUB: 08316B1010AN000	•••NUT	3	Rp3.500
7	86603-58M00-000	••ADJUSTER S/ASSY, OUTSIDE RH	1	Rp2.295.500
8	86642-75L00-000	•••RISER, RR OUTSIDE RH	1	Rp832.500
9	86710-75L00-000	•••RISER, FR OUTSIDE RH	1	Rp869.500
10	08316-1010A-000 SUB: 08316B1010AN000	•••NUT	3	Rp3.500
11	86691-58M00-000	••HANDLE, FR SEAT ADJUSTER	1	Rp308.500
12	01550-0816A-000 SUB: 01550B0816AN000	••BOLT, FR RISER	2	Rp6.000
13	01550-1016A-000 SUB: 01550B1016AN000	••BOLT, RR RISER	2	Rp5.500
14	85180-58M00-KBN	TRIM, FR CUSH RH (BLACK/GRAY)	1	Rp1.268.000
15	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
16	85211-68K00-5PK	KNOB, RCLNG RH (BLACK)	1	Rp323.000
17	85221-74L00-5PK	COVER, RCLNG OUTSIDE RH (BLACK)	1	Rp366.500
18	85241-75L00-5PK	COVER, FR HINGE OUTSIDE (BLACK)	1	Rp131.000
19	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FR BACK	1	Rp34.000
20	85222-75L00-000	COVER, FR BACK FRAME RH	1	Rp173.000
21	85305-58M00-000	BACK S/ASSY, FR RH	1	Rp11.434.500
22	85341-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp240.000
23	85380-58M00-KBN	TRIM, FR BACK RH (BLACK/GRAY)	1	Rp1.029.000
24	85840-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp235.000
25	09387-19001-000 SUB: 09387B19001N000	RING	7	Rp9.000
26	86401-58M00-KBP	HEADRESTRAINT ASSY (BLACK)	1	Rp934.500
27	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FR BACK FIX	1	Rp4.500
28	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	2	Rp13.000
29	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
30	03241-0510A-000	SCREW	2	Rp8.000
31	09119-08097-000 SUB: 09119-08094-000	BOLT (8X25)	4	Rp27.500
