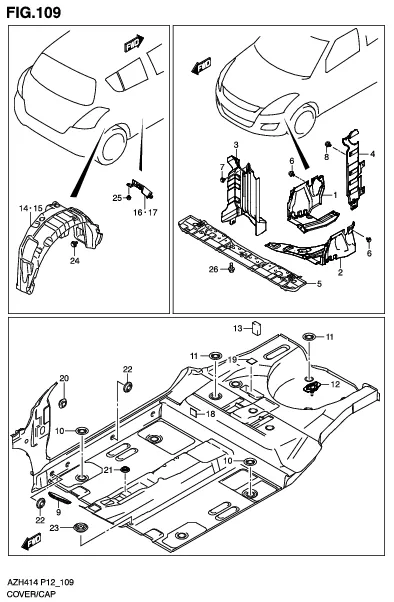

FIG.109 COVER/CAP

FIG.109 COVER/CAP
No No. Part Description Qty Price Per Pcs Remarks
1 72411-71L00-000 COVER, ENGINE UNDER RH 1 Rp461.000
2 72421-58M00-000
SUB: 72421-71L00-000		 COVER, ENGINE UNDER LH 1 Rp250.500
3 72431-58M00-000
SUB: 72431-68L00-000		 COVER, ENGINE FRONT 1 Rp292.500
4 72437-68L00-000 COVER, FRONT END SIDE LH 1 Rp209.000
5 72460-71LA0-000 COVER, FR BUMPER LOWER 1 Rp328.000
6 09409-07L04-000 CLIP 11 Rp27.000
7 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000
8 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000
9 DISCONTINUE
SUB: 75420B63J00N000		 CAP, DASH LOWER 2 -
10 75431-58J00-000 CAP, MAIN FLOOR DRAIN 4 Rp40.000
11 75431-58J00-000 CAP, REAR FLOOR DRAIN 7 Rp40.000
12 75450-68L00-000 HOLDER, SPARE TIRE 1 Rp61.000
13 75462-68L00-000 PAD, QTR PANEL RR LOWER 2 Rp390.500
14 75511-58M01-000
SUB: 75511-58M00-000		 LINING, REAR FENDER RH 1 Rp662.500
15 75521-58M01-000
SUB: 75521-58M00-000		 LINING, REAR FENDER LH 1 Rp662.500
16 75531-68L00-000 COVER, MAIN FLOOR END RH 1 Rp54.000
17 75541-68L00-000 COVER, MAIN FLOOR END LH 1 Rp54.000
18 77151-82000-000
SUB: 77151B82000N000		 FILM, REAR FLOOR FRONT 2 Rp7.000
19 77151-82000-000
SUB: 77151B82000N000		 FILM, REAR FLOOR REAR 2 Rp7.000
20 09250-15012-000
SUB: 77111-63J00-000		 CAP, DASH SIDE 4 Rp5.000
21 09250-15L03-000
SUB: 09250-15015-000		 CAP (OD:23.5) 1 Rp5.500
22 09250M20031-000
SUB: 09250-20015-000		 CAP (OD:28.5) 10 Rp4.500
23 09250-25007-000 CAP (OD:25.0) 2 Rp10.500
24 09409-07L04-000 CLIP 21 Rp27.000
25 09409-07L04-000 CLIP 4 Rp27.000
26 02162-0616A-000 SCREW 5 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
