  5. FIG.112 ROOF MOLDING

ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.93 FRONT HOOD PANELFIG.94 FRONT FENDERFIG.95 FRONT BODY PANELFIG.96 FLOOR PANELFIG.97 SIDE BODY PANELFIG.98 ROOF PANELFIG.99 FRONT BUMPERFIG.100 REAR BUMPERFIG.101 INSTRUMENT PANELFIG.102 VENTILATORFIG.103 HEATER UNIT (GL)FIG.104 HEATER UNIT (GLX)FIG.105 HEATER CONTROL (GL)FIG.106 CONSOLE BOXFIG.107 FLOOR CARPETFIG.108 INTERIOR TRIMFIG.109 COVER/CAPFIG.110 FUEL LID OPENERFIG.111 ROOF LININGFIG.112 ROOF MOLDINGFIG.113 EMBLEMFIG.114 WINDSHIELDFIG.115 FRONT DOOR PANELFIG.116 FRONT DOOR REGULATOR FIG.117 FRONT DOOR LOCKFIG.118 REAR DOOR PANELFIG.119 REAR DOOR REGULATORFIG.120 REAR DOOR LOCKFIG.121 BACK DOOR PANELFIG.122 BACK DOOR LOCKFIG.123 MIRROR/SUNVISOR (GL)FIG.124 MIRROR/SUNVISOR (GLX)FIG.125 SEAT BELTFIG.126 FRONT RH SEAT (GL)FIG.127 FRONT RH SEAT (GLX)FIG.128 FRONT LH SEATFIG.129 REAR SEATFIG.130 PARCEL SHELF (GLX)FIG.131 FUEL TANKFIG.132 TOOLFIG.133 AIR CONDITIONERFIG.134 COMPRESSOR

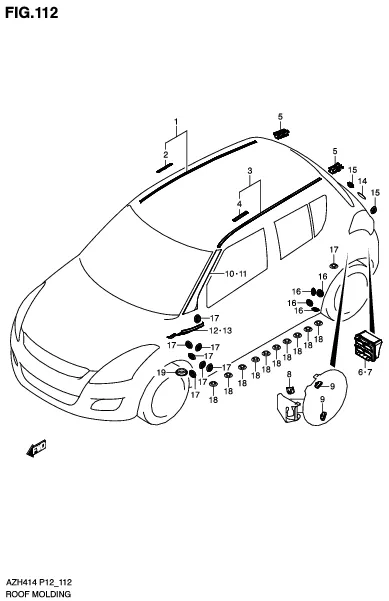

FIG.112 ROOF MOLDING

FIG.112 ROOF MOLDING
No No. Part Description Qty Price Per Pcs Remarks
1 78130-58M00-000 MOLDING, ROOF RH 1 Rp1.012.500
2 78132-57L01-000 •CAP, ROOF MOLDING RH 2 Rp153.000
3 78140-58M00-000 MOLDING, ROOF LH 1 Rp1.012.500
4 78132-57L01-000 •CAP, ROOF MOLDING LH 2 Rp153.000
5 78150-57L10-000 CLIP, ROOF MOLDING 12 Rp56.000
6 77330M74L21-000 OUTLET, VENTILATOR RH 1 Rp63.500 RH
7 77330-74L10-000
SUB: 77330M74L11-000		 OUTLET, VENTILATOR LH 1 Rp26.500 LH
8 77121-63J00-000 SPRING, FUEL LID 1 Rp49.500
9 77116M60B00-000
SUB: 77116-60B00-000		 CUSHION, FUEL LID 2 Rp11.500
10 77141-58M10-0CB
SUB: 77141-58M00-0CB		 TAPE, FRONT PILLAR UPPER RH (BLACK)(BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ ) 1 Rp249.000 BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ
11 77146-58M10-0CB
SUB: 77146-58M00-0CB		 TAPE, FRONT PILLAR UPPER LH (BLACK)(BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ ) 1 Rp287.500 BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ
12 77161-71L00-000 MOLDING, FRONT PILLAR LOWER RH 1 Rp110.500
13 77171-71L00-000 MOLDING, FRONT PILLAR LOWER LH 1 Rp110.500
14 77191-79F00-000
SUB: 77191B79F00N000		 FILM, BACK DOOR CUSHION 4 Rp7.500
15 09250-10016-000
SUB: 09250-10023-000		 CAP (OD:18) 4 Rp14.000
16 09250-15012-000
SUB: 77111-63J00-000		 CAP, RR WHEEL HOUSE 8 Rp5.000
17 09250-17001-000 CAP (OD:25.5) 14 Rp6.500
18 09250-15L03-000
SUB: 09250-15015-000		 CAP (OD:23.5) 20 Rp5.500
19 72397-58J00-000 CAP, DASH LOWER 2 Rp39.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
