ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.93 FRONT HOOD PANEL FIG.94 FRONT FENDER FIG.95 FRONT BODY PANEL FIG.96 FLOOR PANEL FIG.97 SIDE BODY PANEL FIG.98 ROOF PANEL FIG.99 FRONT BUMPER FIG.100 REAR BUMPER FIG.101 INSTRUMENT PANEL FIG.102 VENTILATOR FIG.103 HEATER UNIT (GL)FIG.104 HEATER UNIT (GLX)FIG.105 HEATER CONTROL (GL)FIG.106 CONSOLE BOX FIG.107 FLOOR CARPET FIG.108 INTERIOR TRIM FIG.109 COVER/CAP FIG.110 FUEL LID OPENER FIG.111 ROOF LINING FIG.112 ROOF MOLDING FIG.113 EMBLEM FIG.114 WINDSHIELD FIG.115 FRONT DOOR PANEL FIG.116 FRONT DOOR REGULATOR FIG.117 FRONT DOOR LOCK FIG.118 REAR DOOR PANEL FIG.119 REAR DOOR REGULATOR FIG.120 REAR DOOR LOCK FIG.121 BACK DOOR PANEL FIG.122 BACK DOOR LOCK FIG.123 MIRROR/SUNVISOR (GL)FIG.124 MIRROR/SUNVISOR (GLX)FIG.125 SEAT BELT FIG.126 FRONT RH SEAT (GL)FIG.127 FRONT RH SEAT (GLX)FIG.128 FRONT LH SEAT FIG.129 REAR SEAT FIG.130 PARCEL SHELF (GLX)FIG.131 FUEL TANK FIG.132 TOOL FIG.133 AIR CONDITIONER FIG.134 COMPRESSOR

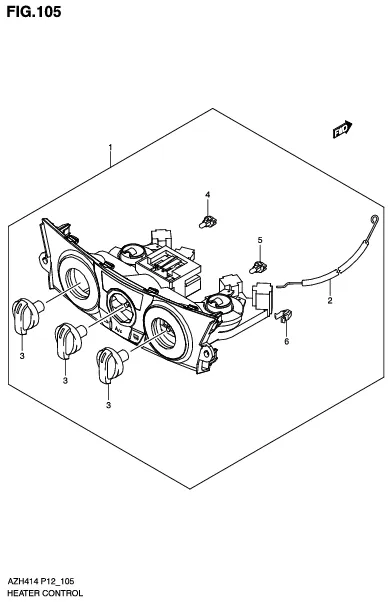

FIG.105 HEATER CONTROL (GL)

FIG.105 HEATER CONTROL (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74400-58M00-5PK	CONTROL UNIT, HVAC (BLACK)	1	Rp1.942.000
2	74451-58M00-000	•CABLE, MODE CONTROL	1	-
3	74461-58M00-000	•KNOB, DIAL	3	-
4	74531-58M00-000 SUB: 74531B58M00N000	•BULB (W/YELLOW CAP)	1	Rp613.500
5	74532-58M00-000 SUB: 74532B58M00N000	•BULB (CLEAR)	1	Rp545.500
6	09409-08349-000 SUB: 09409B08342N000	•CLIP	4	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
