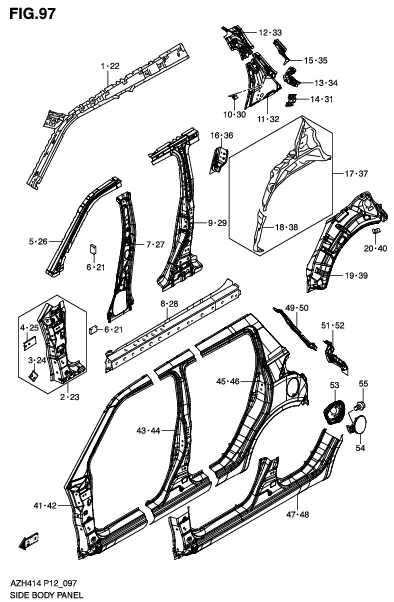

FIG.97 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	63110-58M00-000	PANEL, FR PILLAR INNER RH	1	Rp2.289.000
2	63140-58M00-000	REINF, FR DOOR HINGE RH	1	Rp1.112.000
3	63144-58J00-000 SUB: 63144B58J00N000	•RETAINER, FRONT DOOR HINGE LWR	1	Rp18.500
4	63146M83K00-000	•RETAINER, FRONT DOOR HINGE UPR	1	Rp23.000
5	63151-58M00-000	REINF, FR PILLAR UPPER RH	1	Rp663.500
6	83921-82C00-000	BAFFLE, FR PILLAR	4	Rp51.000
7	63210-58M00-000	PANEL, CTR PILLAR INNER RH	1	Rp1.019.000
8	63220-74L00-000	STRENGTH, SIDE SILL RH	1	Rp4.266.000
9	63230-58M00-000	REINF, CTR PILLAR RH	1	Rp1.851.000
10	63185-58M00-000	REINF, SIDE BODY OUTER RR	1	Rp164.000
11	63311-58M00-000	PANEL, QTR INNER UPPER RH	1	Rp958.500
12	63312-58M00-000	EXTENSION, QTR INNER UPR RH	1	Rp262.000
13	63313-68L00-000	PANEL, RR LAMP HOUSE INNER RH	1	Rp238.500
14	63314-74L00-000	REINF, SEAT BACK STRIKER	1	Rp62.000
15	63315-74L00-000	REINF, REAR SEAT BELT RH	1	Rp155.000
16	63320-58M00-000	REINF, RR DOOR STRIKER	1	Rp125.000
17	63410-58M00-000	PANEL, WHEEL HOUSE INNER RH	1	Rp3.936.000
18	63413-74L00-000	•REINF, RR WHEEL HOUSE FR RH	1	Rp241.500
19	63481-74L00-000	PANEL, WHEEL HOUSE OUTER RH	1	Rp1.824.000
20	63482-74L00-000	BRACKET, RR FENDER LINING	1	Rp665.000
21	83921-82C00-000	PAD	4	Rp51.000
22	63510-58M00-000	PANEL, FR PILLAR INNER LH	1	Rp2.289.000
23	63540-58M00-000	REINF, FRONT DOOR HINGE LH	1	Rp1.112.000
24	63144-58J00-000 SUB: 63144B58J00N000	•RETAINER, FRONT DOOR HINGE LWR	1	Rp18.500
25	63146M83K00-000	•RETAINER, FRONT DOOR HINGE UPR	1	Rp23.000
26	63551-74L00-000	REINF, FR PILLAR UPPER LH	1	Rp651.500
27	63610-58M00-000	PANEL, CTR PILLAR INNER LH	1	Rp1.019.000
28	63620-74L00-000	STRENGTH, SIDE SILL LH	1	Rp4.266.000
29	63630-58M00-000	REINF, CTR PILLAR LH	1	Rp1.851.000
30	63185-58M00-000	REINF, SIDE BODY OUTER RR	1	Rp164.000
31	63314-74L00-000	REINF, SEAT BACK STRIKER	1	Rp62.000
32	63711-58M00-000	PANEL, QTR INNER UPPER LH	1	Rp958.500
33	63712-58M00-000	EXTENSION, QTR INNER UPR LH	1	Rp262.000
34	63713-68L00-000	PANEL, RR LAMP HOUSE INNER LH	1	Rp238.500
35	63715-74L00-000	REINF, REAR SEAT BELT LH	1	Rp193.000
36	63720-58M00-000	REINF, RR DOOR STRIKER LH	1	Rp125.000
37	63810-58M00-000	PANEL, WHEEL HOUSE INNER LH	1	Rp3.936.000
38	63813-74L00-000	•REINF, RR WHEEL HOUSE FR LH	1	Rp245.500
39	63881-58M00-000	PANEL, WHEEL HOUSE OUTER LH	1	Rp1.824.000
40	63482-74L00-000	BRACKET, RR FENDER LINING	1	Rp665.000
41	64111-58M00-P11	PANEL, A-PILLAR RH	1	Rp3.961.000
42	64511-58M00-P11	PANEL, A-PILLAR LH	1	Rp3.961.000
43	64111-58M00-P21	PANEL, B-PILLAR RH	1	Rp3.439.500
44	64511-58MA0-P21 SUB: 64511-58M00-P21	PANEL, B-PILLAR LH	1	Rp3.439.500
45	64111-58MA0-P31 SUB: 64111-58M00-P31	PANEL, QUARTER RH	1	Rp5.406.500
46	64511-58MA0-P31 SUB: 64511-58M00-P31	PANEL, QUARTER LH	1	Rp5.406.500
47	64111-58M00-P41	PANEL, SIDE SILL RH	1	Rp4.904.000
48	64511-58MA0-P41 SUB: 64511-58M00-P41	PANEL, SIDE SILL LH	1	Rp4.904.000
49	64120-74L00-000	EXTENSION, SIDE BODY OTR RH	1	Rp262.000
50	64520-74L00-000	EXTENSION, SIDE BODY OTR LH	1	Rp262.000
51	64131-74L00-000	PANEL, RR LAMP HOUSE OUTER RH	1	Rp294.500
52	64531-74L00-000	PANEL, RR LAMP HOUSE OUTER LH	1	Rp294.500
53	64571-74L00-000	BOX, FUEL FILLER	1	Rp433.500
54	64850-68L00-000	DOOR, FUEL FILLER	1	Rp495.000
55	DISCONTINUE SUB: 01550B0612AN000	BOLT	2	-
