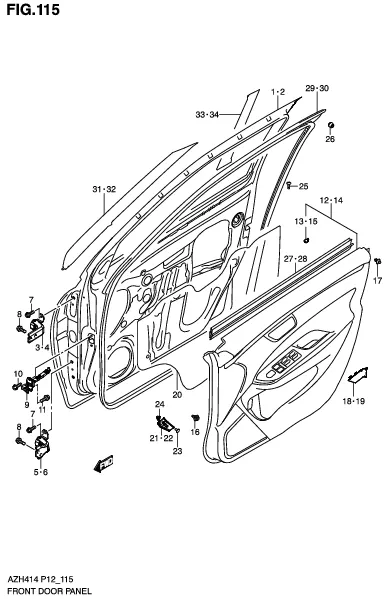

FIG.115 FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-58M21-000 SUB: 68001-58M00-000	PANEL ASSY, FRONT DOOR RH	1	Rp5.576.000
2	68002-58M21-000 SUB: 68002-58M00-000	PANEL ASSY, FRONT DOOR LH	1	Rp5.576.000
3	69310M68L00-000 SUB: 69310-68LB0-000	HINGE, FRONT DOOR UPPER RH	1	Rp82.500
4	69320M68L00-000 SUB: 69320-68LB0-000	HINGE, FRONT DOOR UPPER LH	1	Rp82.500
5	69330M68L00-000 SUB: 69330-68LB0-000	HINGE, FRONT DOOR LOWER RH	1	Rp74.000
6	69340M68L00-000 SUB: 69340-68LB0-000	HINGE, FRONT DOOR LOWER LH	1	Rp74.000
7	09103M08557-000 SUB: 09103-08389-000	BOLT (8X24)	8	Rp8.500
8	01551-0820A-000	BOLT	8	Rp17.500
9	81810M75J03-000 SUB: 81810M75J02-000	STOP, FRONT DOOR OPEN	2	Rp72.000
10	02162-0612A-000	SCREW	4	Rp11.000
11	09112-08015-000	BOLT (8X25)	2	Rp32.000
12	83710-58M00-KBS	TRIM, FRONT DOOR RH (BLACK/SILVER)	1	Rp2.271.000
13	83752-80J00-5PK	•CAP, INSIDE PULL CASE (BLACK)	1	Rp74.000
14	83720-58M00-KBS	TRIM, FRONT DOOR LH (BLACK/SILVER)	1	Rp2.271.000
15	83752-80J00-5PK	•CAP, INSIDE PULL CASE (BLACK)	1	Rp74.000
16	09409-10327-000 SUB: 09409M10312-000	CLIP	16	Rp5.000
17	09409-06314-5PK SUB: 09409B06314N5PK	CLIP (BLACK)	4	Rp3.500
18	83755-68L00-5PK	CAP, INSIDE HANDLE BEZRL RH (BLACK)	1	Rp126.500
19	83756-68L00-5PK	CAP, INSIDE HANDLE BEZRL LH (BLACK)	1	Rp126.500
20	83911M68L00-000	COVER, DOOR SEALING	2	Rp13.000
21	83751-75HA0-000 SUB: 83751B75HA0N000	BRACKET, DOOR TRIM RH	1	Rp8.000
22	83756-75HA0-000 SUB: 83756B75HA0N000	BRACKET, DOOR TRIM LH	1	Rp8.000
23	03141M0612A-000 SUB: 03241-0612A-000	SCREW	2	Rp4.500
24	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	82711-68H00-000	STOPPER, DOOR	4	Rp42.000
27	83851-58M00-000	WEATHERSTRIP, DOOR INNER RH	1	Rp262.000
28	83861-58M00-000	WEATHERSTRIP, DOOR INNER LH	1	Rp262.000
29	84641-58M00-000	WEATHERSTRIP, DOOR OPNG RH	1	Rp444.000
30	84651-58M00-000	WEATHERSTRIP, DOOR OPNG LH	1	Rp444.000
31	83921-58M10-0CB SUB: 83921-58M00-0CB	TAPE, FRONT DOOR OUTER FR RH (BLACK) BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ	1	Rp175.500	BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ
32	83922-58M10-0CB SUB: 83922-58M00-0CB	TAPE, FRONT DOOR OUTER FR LH (BLACK) BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ	1	Rp175.500	BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ
33	83923-58M10-0CB SUB: 83923-58M00-0CB	TAPE, FRONT DOOR OUTER RR RH (BLACK) BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ	1	Rp125.000	BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ
34	83924-58M10-0CB SUB: 83924-58M00-0CB	TAPE, FRONT DOOR OUTER RR LH(BLACK) BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW, ZTZ	1	Rp125.000	BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ
