ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.93 FRONT HOOD PANELFIG.94 FRONT FENDERFIG.95 FRONT BODY PANELFIG.96 FLOOR PANELFIG.97 SIDE BODY PANELFIG.98 ROOF PANELFIG.99 FRONT BUMPERFIG.100 REAR BUMPERFIG.101 INSTRUMENT PANELFIG.102 VENTILATORFIG.103 HEATER UNIT (GL)FIG.104 HEATER UNIT (GLX)FIG.105 HEATER CONTROL (GL)FIG.106 CONSOLE BOXFIG.107 FLOOR CARPETFIG.108 INTERIOR TRIMFIG.109 COVER/CAPFIG.110 FUEL LID OPENERFIG.111 ROOF LININGFIG.112 ROOF MOLDINGFIG.113 EMBLEMFIG.114 WINDSHIELDFIG.115 FRONT DOOR PANELFIG.116 FRONT DOOR REGULATOR FIG.117 FRONT DOOR LOCKFIG.118 REAR DOOR PANELFIG.119 REAR DOOR REGULATORFIG.120 REAR DOOR LOCKFIG.121 BACK DOOR PANELFIG.122 BACK DOOR LOCKFIG.123 MIRROR/SUNVISOR (GL)FIG.124 MIRROR/SUNVISOR (GLX)FIG.125 SEAT BELTFIG.126 FRONT RH SEAT (GL)FIG.127 FRONT RH SEAT (GLX)FIG.128 FRONT LH SEATFIG.129 REAR SEATFIG.130 PARCEL SHELF (GLX)FIG.131 FUEL TANKFIG.132 TOOLFIG.133 AIR CONDITIONERFIG.134 COMPRESSOR

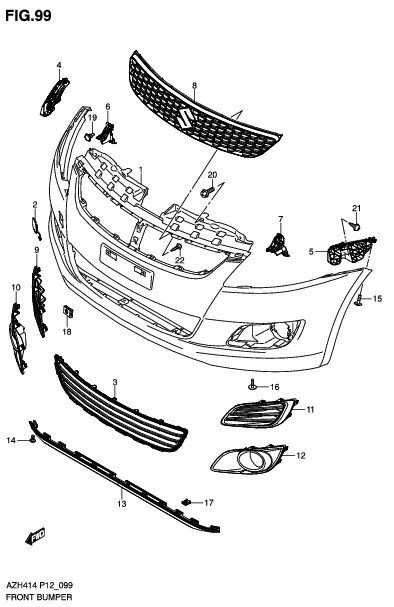

FIG.99 FRONT BUMPER

FIG.99 FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711-58M00-799 BUMPER, FRONT (PRIMARY) 1 Rp1.881.500 PAINT TO MATCH
2 71712-74L00-799 CAP, FRONT BUMPER (PRIMARY) 1 Rp79.000 PAINT TO MATCH
3 71721-58M00-5PK GRILLE, RADIATOR LOWER (BLACK) 1 Rp538.000
4 71731-74L00-000 HOLDER, FR BUMPER SIDE RH 1 Rp75.000
5 71732-74L00-000 HOLDER, FR BUMPER SIDE LH 1 Rp75.000
6 71733-68L00-000 HOLDER, FR BUMPER FR RH 1 Rp40.500
7 71734-68L00-000 HOLDER, FR BUMPER FR LH 1 Rp40.500
8 71741-58M00-5PK GRILLE, RADIATOR UPPER (BLACK) 1 Rp869.500
9 71751-58M00-5PK BEZEL, FRONT FOG LAMP RH (BLACK) GL 1 Rp125.000 GL
10 71751-58M10-5PK BEZEL, FRONT FOG LAMP RH (BLACK) GLX 1 Rp118.000 GLX
11 71761-58M00-5PK BEZEL, FRONT FOG LAMP LH (BLACK) GL 1 Rp122.000 GL
12 71761-58M10-5PK BEZEL, FRONT FOG LAMP LH (BLACK) GLX 1 Rp118.000 GLX
13 71771-58M00-000 SKIRT, FR AIR DAM 1 Rp301.500
14 09132-05046-000 SCREW (5X12) 6 Rp13.500
15 09136-05068-000 SCREW (5X20) 2 Rp15.000
16 09136-05068-000 SCREW (5X20) 4 Rp15.000
17 09148-05L07-000 NUT 6 Rp21.500
18 09148-06L03-000 NUT 2 Rp21.500
19 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000
20 02162-0616A-000 SCREW 4 Rp3.000
21 03541-0512A-000 SCREW 4 Rp3.500
22 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 5 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
