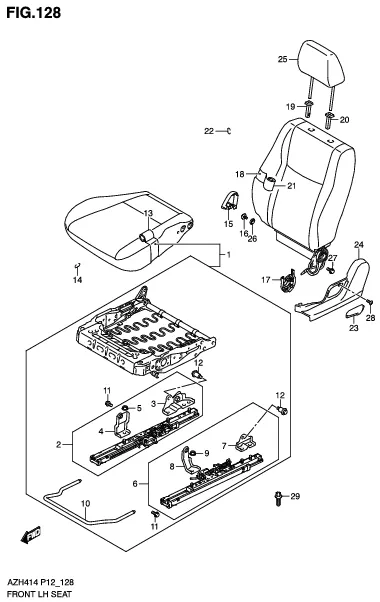

FIG.128 FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	85106-58M00-000	CUSHION S/ASSY, FR LH	1	Rp15.191.000
2	86602-58M00-000	•ADJUSTER, FR INSIDE LH	1	Rp944.000
3	86762-75L00-000	••RISER, RR INSIDE LH	1	Rp1.032.500
4	86771-75L00-000	••RISER, FR INSIDE LH	1	Rp947.500
5	08316-1010A-000 SUB: 08316B1010AN000	••NUT	3	Rp3.500
6	86604-58M00-000	•ADJUSTER, FR OUTSIDE LH	1	Rp944.000
7	86647-75L00-000	••RISER, RR OUTSIDE LH	1	Rp1.032.500
8	86760-75L00-000	••RISER, FR OUTSIDE LH	1	Rp957.000
9	08316-1010A-000 SUB: 08316B1010AN000	••NUT	3	Rp3.500
10	86691-58M00-000	•HANDLE, FR SEAT ADJUSTER	1	Rp308.500
11	01550-0816A-000 SUB: 01550B0816AN000	•BOLT	2	Rp6.000
12	01550-1016A-000 SUB: 01550B1016AN000	•BOLT	2	Rp5.500
13	85680-58M00-KBN	TRIM, FR CUSH LH (BLACK/GRAY)	1	Rp1.268.000
14	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
15	85241-75L00-5PK	COVER, FR HINGE OUTSIDE (BLACK)	1	Rp131.000
16	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FR BACK	1	Rp34.000
17	85242-75L00-5PK	COVER, FR BACK FRAME LH (BLACK)	1	Rp921.000
18	85306-58M00-000	BACK S/ASSY, FR LH	1	Rp11.434.500
19	85341-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp240.000
20	85840-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp235.000
21	85880-58M10-KBN	TRIM, FR BACK LH (BLACK/GRAY)	1	Rp1.732.000
22	09387-19001-000 SUB: 09387B19001N000	RING	7	Rp9.000
23	85711-68K00-5PK	KNOB, RCLNG LH (BLACK)	1	Rp299.500
24	85721-74L00-5PK	COVER, RCLNG OUTSIDE LH (BLACK)	1	Rp371.500
25	86401-58M00-KBP	HEADRESTRAINT ASSY (BLACK)	1	Rp934.500
26	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FR BACK FIX	1	Rp4.500
27	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
28	03241-0510A-000	SCREW	2	Rp8.000
29	09119-08097-000 SUB: 09119-08094-000	BOLT (8X25)	4	Rp27.500
