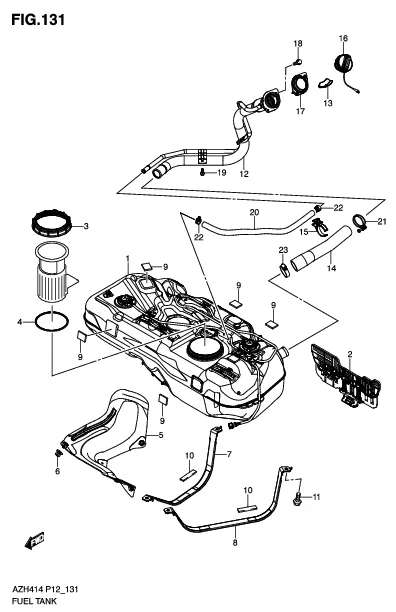

FIG.131 FUEL TANK

FIG.131 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101-58M00-000 TANK, ASSY FUEL 1 Rp11.759.500
2 89185-68L00-000 PLATE,FUEL TANK BAFFLE 1 Rp1.284.500
3 89191-68L00-000 NUT, FUEL PUMP LOCK 1 Rp855.000
4 89192-58M00-000 O-RING, FUEL PUMP 1 Rp387.000
5 89311-74L00-000 INSULATOR, HEAT 1 Rp586.000
6 89315-74L00-000 NUT, HEAT INSULATOR 4 Rp275.500
7 89360-71L00-000 BELT, FUEL TANK FIXER RH 1 Rp955.000
8 89370-71L00-000 BELT, FUEL TANK FIXER LH 1 Rp623.500
9 89385-58M00-000 PAD, FUEL TANK 5 Rp199.500
10 89386-74L00-000 PAD, FUEL TANK BELT 4 -
11 09118-10078-000
SUB: 09118-10073-000		 BOLT (10X30) 4 Rp19.000
12 89210-58M20-000 NECK ASSY, FUEL FILLER 1 Rp769.000
13 89232-57L00-000 COVER, FUEL FILLER NECK 1 Rp40.500
14 89241-58M10-000 HOSE, FUEL TANK FILLER 1 Rp175.000
15 89242-68L00-000 CLAMP, FILLER & BREATHE 1 Rp40.000
16 89260-77K01-000 CAP ASSY, FUEL FILLER 1 Rp379.500
17 89285M58J00-000 PACKING, FUEL FILLER 1 Rp13.500
18 09116-05023-000 BOLT (5X20) 2 Rp18.500
19 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
20 09355-13L02-480 HOSE, FUEL TANK BREATHER 1 Rp84.500
21 09400-45411-000 CLAMP 1 Rp41.500
22 09401-18406-000
SUB: 09401B18406N000		 CLIP 2 Rp18.500
23 09402-50512-000 CLAMP 1 Rp68.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
