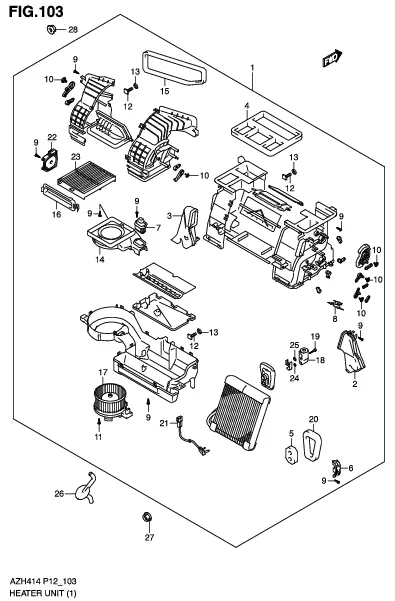

FIG.103 HEATER UNIT (GL)

FIG.103 HEATER UNIT (GL)
No No. Part Description Qty Price Per Pcs Remarks
1 74100-58M60-000 HEATER UNIT 1 Rp7.738.500
2 74114-58M00-000 •FOOT DUCT RH 1 Rp234.500
3 74115-58M00-000 •FOOT DUCT LH 1 Rp256.500
4 74116-58M00-000 •PACKING, DUCT 1 Rp120.500
5 74117-58M00-000 •PACKING, HEATER PIPE 1 Rp51.000
6 74133-58M60-000 •ADAPTOR 1 Rp76.500
7 74140-71L00-000 •RESISTOR ASSY 1 Rp1.122.000
8 74161-68H00-000 •CLAMP, CABLE 1 Rp77.000
9 74192-58M00-000 •SCREW (4X16) 0 Rp23.500
10 74192-71L00-000 •SCREW (4X16) 0 Rp68.000
11 74193-58M00-000 •SCREW (5X14) 3 Rp21.000
12 74195-58M00-000 •STUD BOLT (6X27) 5 Rp34.500
13 74196-82K00-000 •SEAL, RUBBER 5 Rp81.000
14 74211-58M00-000 •CASE, BLOWER UPPER 1 Rp253.000
15 74212-58M00-000 •PACKING, INTAKE 1 Rp43.500
16 74214-58M00-000 •FILTER COVER 1 Rp58.500
17 74250-58M00-000 •MOTOR ASSY, BLOWER 1 Rp1.299.000
18 95431-61P00-000
SUB: 95431-71L00-000		 •TXV ASSY 1 Rp1.388.000
19 95432-82K00-000 •BOLT 2 Rp37.500
20 95464-58M00-000 •PACKING, TXV 1 Rp55.000
21 95541-58M00-000 •THERMISTOR ASSY 1 Rp526.500
22 95652-58M00-000 •INTAKE, AIR MIXTURE 1 Rp461.000
23 95861-58M00-000 •FILTER, AIR 1 Rp169.500
24 95895-68H00-000 •O RING 1 Rp43.500
25 95897-68H00-000 •O RING 1 Rp43.500
26 95481M74L00-000 HOSE, DRAIN 1 Rp60.000
27 09159-06081-000 NUT 1 Rp14.500
28 09159-06086-000 NUT 5 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
