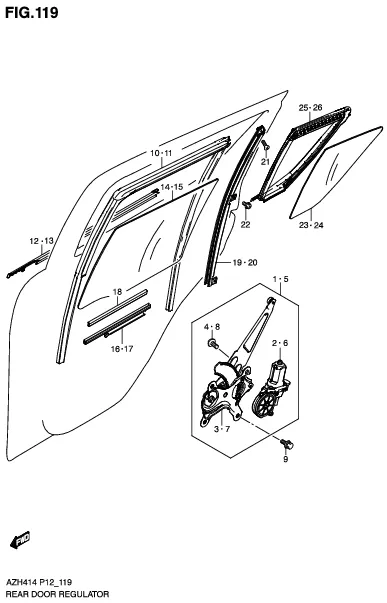

FIG.119 REAR DOOR REGULATOR

FIG.119 REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83501-58MA1-000 REGULATOR ASSY, WINDOW RH 1 Rp1.230.500
2 83460-61J11-000 •MOTOR ASSY, WINDOW RH 1 Rp698.500
3 83510-58MA0-000 •REGULATOR S/ASSY, WINDOW RH 1 Rp896.000
4 09139-05063-000 •SCREW (5X11) 3 Rp16.000
5 83502-58MA1-000 REGULATOR ASSY, WINDOW LH 1 Rp1.230.500
6 83430-61J11-000 •MOTOR ASSY, WINDOW LH 1 Rp698.500
7 83540-58MA0-000 •REGULATOR S/ASSY, WINDOW LH 1 Rp896.000
8 09139-05063-000 •SCREW (5X11) 3 Rp16.000
9 01580-0610A-000 BOLT 4 Rp36.000
10 83671-58M00-000 RUN, GLASS RH 1 Rp392.500
11 83675-58M00-000 RUN, GLASS LH 1 Rp392.500
12 83831-58M00-000 WEATHERSTRIP, DOOR OUT RH 1 Rp311.500
13 83841-58M00-000 WEATHERSTRIP, DOOR OUT LH 1 Rp311.500
14 84541-58M01-000
SUB: 84541-58M00-000		 GLASS, DOOR WINDOW RH 1 Rp620.000
15 84546-58M01-000
SUB: 84546-58M00-000		 GLASS, DOOR WINDOW LH 1 Rp620.000
16 83630M72J00-000
SUB: 83630-72J00-000		 CHANNEL, REAR GLASS BOTTOM RH 1 Rp23.500
17 83640M72J00-000
SUB: 83640-72J00-000		 CHANNEL, REAR GLASS BOTTOM LH 1 Rp23.500
18 83691-60A00-000
SUB: 83691-63J00-000		 RUBBER, GLASS BOTTOM 2 Rp37.000
19 81770M74L00-000 SASH, REAR RH 1 Rp205.500
20 81780M74L00-000 SASH, REAR LH 1 Rp205.500
21 02122M0512A-000
SUB: 02122-0512A-000		 SCREW 2 Rp3.500
22 02162-0612A-000 SCREW 4 Rp11.000
23 84551-58M01-000
SUB: 84551-58M00-000		 GLASS, RR DR PARTITION RH 1 Rp370.000
24 84556-58M01-000
SUB: 84556-58M00-000		 GLASS, RR DR PARTITION LH 1 Rp370.000
25 84665-58M00-000 WEATHERSTRIP, DR PARTITION RH 1 Rp262.000
26 84675-58M00-000 WEATHERSTRIP, DR PARTITION LH 1 Rp262.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
