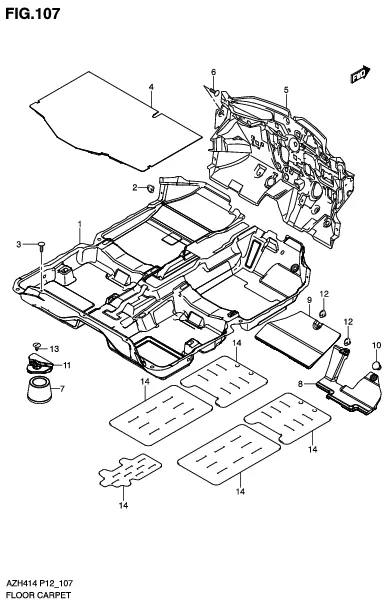

FIG.107 FLOOR CARPET

FIG.107 FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75110-58M00-R3F	CARPET, FLOOR (BLACK)	1	Rp3.845.000
2	09148-05037-000	NUT	2	Rp18.000
3	09409-10302-5PK	CLIP (BLACK)	3	Rp18.500
4	75130-58M00-R3F	CARPET, LUGGAGE FL (BLACK)	1	Rp547.000
5	75220-58M00-000	SILENCER, DASH PANEL	1	Rp5.492.500
6	09409-10302-5PK	CLIP (BLACK)	2	Rp18.500
7	75141-71L00-000	SPACER, LUGGAGE FLOOR CARPET	1	Rp108.000
8	75411-68L00-000 SUB: 75411B68L00N000	PAD, DASH LOWER RH	1	Rp416.000
9	75412-68L00-000 SUB: 75412B68L00N000	PAD, DASH LOWER LH	1	Rp420.500
10	75471-63J00-000	STOPPER, ACCEL PEDAL	1	Rp34.000
11	75482-68L00-000	BOX, TOWING HOOK BOLT	1	Rp114.500
12	09148-05037-000	NUT	2	Rp18.000
13	09409-06330-000	CLIP	1	Rp21.500
14	99611-60A01-000	SHEET, SILENCER (800X1000X3) CUT AS REQUIRED	0	Rp1.210.000	CUT AS REQUIRED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
