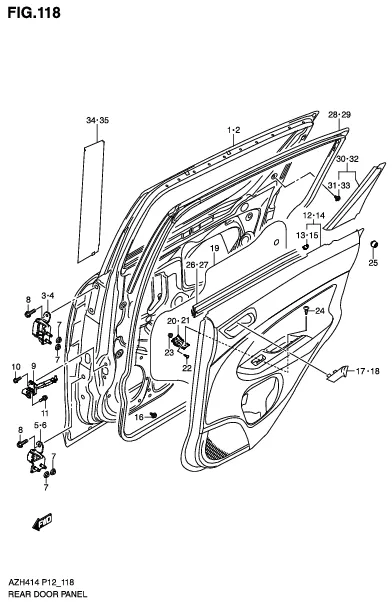

FIG.118 REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003-58M11-000 SUB: 68003-58M00-000	PANEL ASSY, REAR DOOR RH	1	Rp5.520.500
2	68004-58M11-000 SUB: 68004-58M00-000	PANEL ASSY, REAR DOOR LH	1	Rp5.520.500
3	69410M68L00-000 SUB: 69410-68LB0-000	HINGE, REAR DOOR UPPER RH	1	Rp73.500
4	69420M68L00-000 SUB: 69420-68LB0-000	HINGE, REAR DOOR UPPER LH	1	Rp73.500
5	69430-68LB0-000	HINGE, REAR DOOR LOWER RH	1	Rp262.000
6	69440-68LB0-000	HINGE, REAR DOOR LOWER LH	1	Rp262.000
7	08361-2508A-000	NUT	8	Rp16.500
8	09103M08557-000 SUB: 09103-08389-000	BOLT (8X24)	8	Rp8.500
9	81810M75J03-000 SUB: 81810M75J02-000	STOP, REAR DOOR OPEN	2	Rp72.000
10	02162-0612A-000	SCREW	4	Rp11.000
11	09112-08015-000	BOLT (8X25)	2	Rp32.000
12	83730-58M00-KBT	TRIM, REAR DOOR RH (BLACK)	1	Rp1.981.500
13	83752-80J00-5PK	•CAP, INSIDE PULL CASE (BLACK)	1	Rp74.000
14	83740-58M00-KBT	TRIM, REAR DOOR LH (BLACK)	1	Rp1.981.500
15	83752-80J00-5PK	•CAP, INSIDE PULL CASE (BLACK)	1	Rp74.000
16	09409-10327-000 SUB: 09409M10312-000	CLIP	14	Rp5.000
17	83755-68L00-5PK	CAP, INSIDE HANDLE BEZEL RH (BLACK)	1	Rp126.500
18	83756-68L00-5PK	CAP, INSIDE HANDLE BEZEL LH (BLACK)	1	Rp126.500
19	83913M68L00-000	COVER, DOOR SEALING	2	Rp12.000
20	83751-75HA0-000 SUB: 83751B75HA0N000	BRACKET, DOOR TRIM RH	1	Rp8.000
21	83756-75HA0-000 SUB: 83756B75HA0N000	BRACKET, DOOR TRIM LH	1	Rp8.000
22	03141M0612A-000 SUB: 03241-0612A-000	SCREW	2	Rp4.500
23	71851M70F00-000 SUB: 09148-06007-000	NUT	2	Rp4.000
24	09132-05058-000	SCREW (5X12)	2	Rp14.000
25	82711-68H00-000	STOPPER, DOOR	2	Rp42.000
26	83871-58M00-000	WEATHERSTRIP, DOOR INNER RH	1	Rp199.500
27	83881-58M00-000	WEATHERSTRIP, DOOR INNER LH	1	Rp199.500
28	84661-58M00-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp428.500
29	84671-58M00-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp428.500
30	83796-71L00-5PK	GARNISH, DOOR INNER RH (BLACK)	1	Rp158.000
31	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
32	83797-71L00-5PK	GARNISH, DOOR INNER LH (BLACK)	1	Rp158.000
33	09409-10327-000 SUB: 09409M10312-000	•CLIP	2	Rp5.000
34	83931-58M10-0CB SUB: 83931-58M00-0CB	TAPE, DOOR OUT FR RH (BLACK) BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ	1	Rp118.500	BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ
35	83932-58M10-0CB SUB: 83932-58M00-0CB	TAPE, DOOR OUT FR LH (BLACK) BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ	1	Rp125.000	BODY COLOR:ZTR,ZTS,ZTU,ZTV,ZTW,ZTZ
