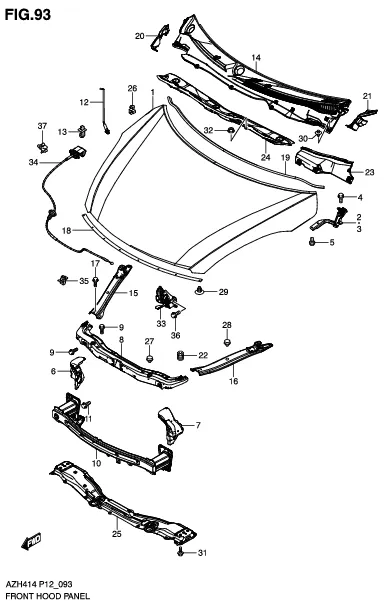

FIG.93 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	57300-58M01-000 SUB: 57300-58M00-000	PANEL, FRONT HOOD	1	Rp3.252.500
2	57410-68L00-000	HINGE, FRONT HOOD RH	1	Rp291.000
3	57420-68L00-000	HINGE, FRONT HOOD LH	1	Rp291.000
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
5	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
6	58110-74L00-000 SUB: 58110B74L00N000	BRACE, LAMP SUPPORT RH	1	Rp239.500
7	58120-74L00-000 SUB: 58120B74L00N000	BRACE, LAMP SUPPORT LH	1	Rp247.000
8	58230-58M00-000 SUB: 58230-74L00-000	MEMBER, HOOD LOCK	1	Rp928.000
9	01550-0820A-000 SUB: 01550B0820AN000	BOLT	4	Rp5.500
10	58270-58M00-000	MEMBER, FR BUMPER UPPER	1	Rp2.458.000
11	01551-0820A-000	BOLT	7	Rp17.500
12	72310-58M01-000 SUB: 72310-71L00-000	STAY, FRONT HOOD	1	Rp267.500
13	72312-82K00-000	HOLDER, FRONT HOOD STAY	1	Rp29.500
14	72330-58M00-5PK	GARNISH ASSY, COWL TOP (BLACK)	1	Rp776.000
15	72340-58M00-000	MEMBER, LAMP SUPPORT RH	1	Rp135.000
16	72350-58M00-000	MEMBER, LAMP SUPPORT LH	1	Rp135.000
17	09122-76006-000	SCREW (6X16)	8	Rp13.000
18	72361M68L00-000	SEAL, HOOD FRONT	1	Rp42.500
19	72362-54L00-000 SUB: 72362-79J00-000	SEAL, HOOD REAR	1	Rp305.500
20	72371-71L00-5PK	GARNISH, COWL TOP SIDE RH (BLACK)	1	Rp81.000
21	72372-71L00-5PK	GARNISH, COWL TOP SIDE LH (BLACK)	1	Rp81.500
22	72372-63J00-000 SUB: 72372B82000N000	CUSHION, FRONT HOOD FRONT	2	Rp8.000
23	72375-68L00-000	COVER, COWL VENT	1	Rp173.000
24	72380-58M00-000	PANEL, FR COWL UPPER	1	Rp366.500
25	72390-71L00-000	CROSSMEMBER, FRONT LOWER	1	Rp889.000
26	09209M09L02-000 SUB: 09209-09007-000	LINKAGE	1	Rp4.500
27	09321-10023-000 SUB: 09321B10023N000	CUSHION	2	Rp6.000
28	09321-10023-000 SUB: 09321B10023N000	CUSHION	2	Rp6.000
29	09409-05308-5PK	CLIP (BLACK)	8	Rp17.500
30	09409M08006-000 SUB: 09409M08L01-000	CLIP	5	Rp5.000
31	01551-0825A-000	BOLT	4	Rp16.000
32	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
33	82110-68L00-000	LATCH, HOOD	1	Rp538.500
34	82160M74L00-000	CABLE, HOOD LATCH RELEASE	1	Rp90.500
35	09403M04401-000	CLAMP	4	Rp4.500
36	02162-0616A-000	SCREW	3	Rp3.000
37	75411-76G00-000	CLAMP	1	Rp31.000
