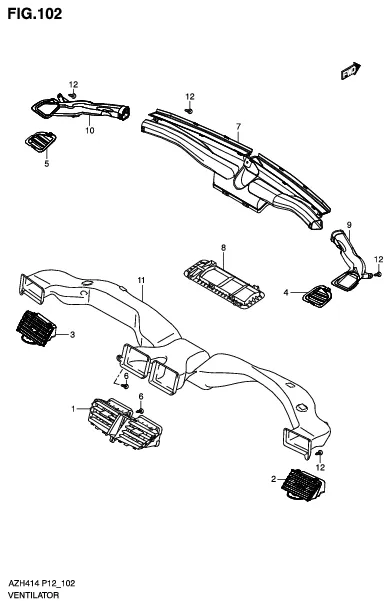

FIG.102 VENTILATOR

FIG.102 VENTILATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73610-58M00-5PK	LOUVER, CTR VENT (BLACK)	1	Rp484.000
2	73630-58M00-5PK	LOUVER, SIDE VENT RH BLACK)	1	Rp284.000
3	73640-58M00-5PK	LOUVER, SIDE VENT LH (BLACK)	1	Rp284.000
4	73651-58M00-5PK	NOZZLE, SIDE DEMISTER RH (BLACK)	1	Rp106.500
5	73652-58M00-5PK	NOZZLE, SIDE DEMISTER LH(BLACK)	1	Rp104.500
6	03541-0412A-000 SUB: 03541B0412AN000	SCREW	2	Rp3.500
7	73661-58M00-000	NOZZLE, DFR	1	Rp868.000
8	73662-58M00-000	ADAPTER, DFR NOZZLE	1	Rp403.500
9	73681-58M00-000	DUCT, DEMISTER RH	1	Rp436.000
10	73691-58M00-000	DUCT, DEMISTER LH	1	Rp436.000
11	74621-58M00-000	DUCT, VENT	1	Rp1.213.500
12	03541-0516A-000 SUB: 03541B0516AN000	SCREW	8	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
