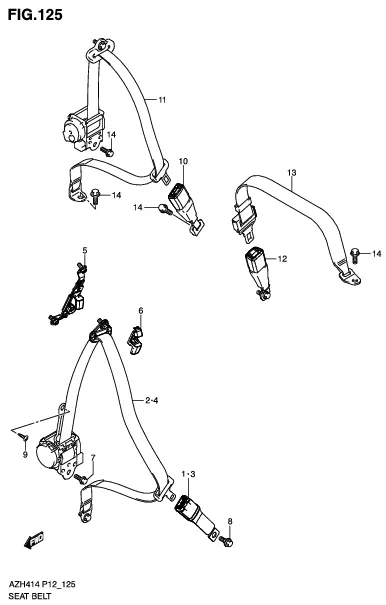

FIG.125 SEAT BELT

FIG.125 SEAT BELT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84910-58M10-000	BUCKLE ASSY, FR BELT RH	1	Rp600.000
2	84920-58M00-BHE	TONGUE ASSY, FR BELT RH(GRAY/BLACK)	1	Rp831.500
3	84910-58M00-000	BUCKLE ASSY, FR BELT LH	1	Rp553.500
4	84940-58M00-BHE	TONGUE ASSY, FR BELT LH (GRAY/BLACK)	1	Rp831.500
5	DISCONTINUE SUB: 84990-79K00-6GS	ADJUSTER, FR SHOULDER (GRAY)	2	-
6	DISCONTINUE SUB: 84991-79K00-6GS	COVER, SHOULDER ADJUSTER(GRAY)	2	-
7	09103M11002-000 SUB: 09103-11002-000	BOLT (7/16X22)	2	Rp7.500
8	09117M11002-000 SUB: 09117-11002-000	BOLT (11X20)	2	Rp19.000
9	03141M0612A-000 SUB: 03141-0612A-000	SCREW	2	Rp4.500
10	84950-58M00-5PK	BUCKLE ASSY, RR BELT(BLACK)	2	Rp744.500
11	84960-58M00-5PK	TONGUE ASSY, RR BELT (BLACK)	2	Rp494.500
12	84975-58M00-5PK	BUCKLE ASSY, RR CENTER (BLACK)	1	Rp737.500
13	84985-58M10-5PK	TONGUE ASSY, RR CENTER (BLACK)	1	Rp544.500
14	09103M11002-000 SUB: 09103-11002-000	BOLT (7/16X22)	7	Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
