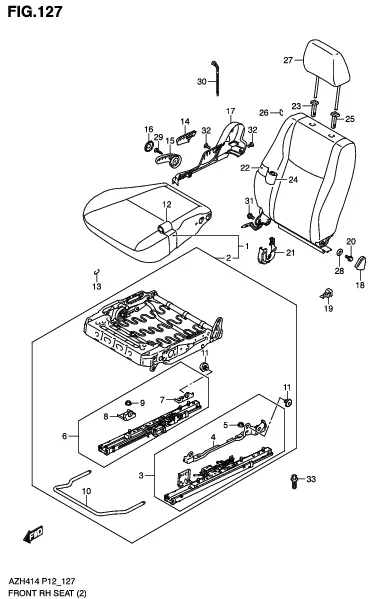

FIG.127 FRONT RH SEAT (GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	85105-58M20-000	CUSHION S/ASSY, FR RH	1	Rp15.191.000
2	85103-58M20-000	•FRAME ASSY, FR CUSH RH	1	Rp14.127.500
3	86601-58M20-000	••ADJUSTER S/ASSY, INSIDE RH	1	Rp944.000
4	86720-75L20-000	•••RISER, LIFTER INSIDE RH	1	Rp1.123.500
5	08316-1010A-000 SUB: 08316B1010AN000	•••NUT	3	Rp3.500
6	86603-58M20-000	••ADJUSTER S/ASSY, OUTSIDE RH	1	Rp944.000
7	86641-75L20-000	•••RISER, RR OUTSIDE RH	1	Rp1.123.500
8	86710-75L20-000	•••RISER, FR OUTSIDE RH	1	Rp984.000
9	08316-1010A-000 SUB: 08316B1010AN000	•••NUT	3	Rp3.500
10	86691-58M00-000	••HANDLE, FR SEAT ADJUSTER	1	Rp308.500
11	86717-63J40-000	••BOLT, RISER	4	Rp74.000
12	85180-58M20-KBN	TRIM, FR CUSH RH (BLACK/GRAY)	1	Rp774.500
13	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
14	85211-68K00-5PK	KNOB, RCLNG RH (BLACK)	1	Rp323.000
15	DISCONTINUE SUB: 85213-65J00-5PK	LEVER, SEAT LIFTER (BLACK)	1	-
16	85214-63J20-5PK	CAP, LIFTER LEVER (BLACK)	1	Rp50.000
17	85221-74L00-5PK	COVER, RCLNG OUTSIDE RH(BLACK)	1	Rp366.500
18	85241-75L00-5PK	COVER, FR HINGE OUTSIDE (BLACK)	1	Rp131.000
19	85243-74L20-5PK	COVER, RR RISER INSIDE RH (BLACK)	1	Rp841.500
20	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FR BACK	1	Rp34.000
21	85222-75L00-000	COVER, FR BACK FRAME RH	1	Rp173.000
22	85305-58M00-000	BACK S/ASSY, FR RH	1	Rp11.434.500
23	85341-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp240.000
24	85380-58M00-KBN	TRIM, FR BACK RH (BLACK/GRAY)	1	Rp1.029.000
25	85840-58M00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp235.000
26	09387-19001-000 SUB: 09387B19001N000	RING	7	Rp9.000
27	86401-58M00-KBP	HEADRESTRAINT ASSY (BLACK)	1	Rp934.500
28	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FR BACK FIX	1	Rp4.500
29	09132-05043-000 SUB: 09132B05043N000	SCREW (5X10)	2	Rp17.500
30	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	2	Rp13.000
31	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
32	03241-0510A-000	SCREW	2	Rp8.000
33	09119-08097-000 SUB: 09119-08094-000	BOLT (8X25)	4	Rp27.500
