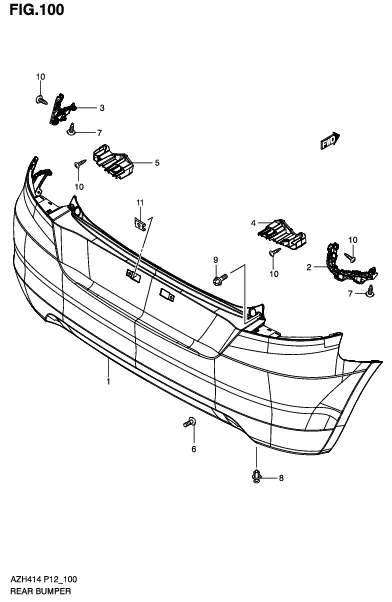

FIG.100 REAR BUMPER

FIG.100 REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71811-58M00-799	BUMPER, REAR (PRIMARY)	1	Rp1.592.000	PAINT TO MATCH
2	71821-58M00-000 SUB: 71821-68L00-000	HOLDER, RR BUMPER SIDE RH	1	Rp83.500
3	71822-58M00-000 SUB: 71822-68L00-000	HOLDER, RR BUMPER SIDE LH	1	Rp83.500
4	71823-68L00-000	HOLDER, RR BUMPER SIDE RR RH	1	Rp39.500
5	71824-68L00-000	HOLDER, RR BUMPER SIDE RR LH	1	Rp39.500
6	09132-05046-000	SCREW (5X12)	2	Rp13.500
7	09136-05068-000	SCREW (5X20)	2	Rp15.000
8	09409M08006-000 SUB: 09409M08L01-000	CLIP	4	Rp5.000
9	02162-0616B-000 SUB: 02162-0616E-000	SCREW	2	Rp15.500
10	03541-0512A-000	SCREW	8	Rp3.500
11	09148-06L03-000	NUT	2	Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
