DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

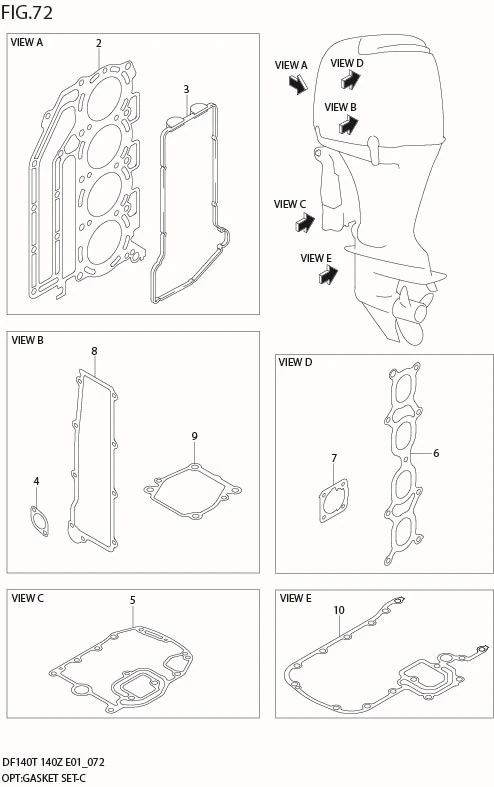

FIG 72 OPT:GASKET SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 11400-92860-000	GASKET SET	1	-	DF140T:682149%
1-1	DISCONTINUE SUB: 11400-92854-000	GASKET SET	1	-
2	11141-92J01-000	?GASKET, CYL HEAD	1	Rp771.000
3	11189-90J00-000	?GASKET, CYL HEAD COVER	1	Rp247.500
4	11265-87E10-000	?GASKET, PROTECTION ANODE	2	Rp34.000
5	11489-90J00-000	?GASKET, OIL PAN	1	Rp323.500
6	13119-90J00-000	?GASKET, INTAKE MANIFOLD	1	Rp54.500
7	13421-90J02-000 SUB: 13421-90J00-000	?GASKET, THROTTLE BODY	1	Rp32.500
8	14151-90J00-000	?GASKET, RECTIFIER	1	Rp54.500
9	17472-87E10-000	?GASKET, PUMP CASE PANEL	1	Rp53.000
10-1	51211-90J10-000	?GASKET, ENGINE HOLDER	1	Rp832.500
10-2	51211-90J22-000 SUB: 51211-90J21-000	?GASKET, ENGINE HOLDER	1	Rp657.000	DF140T:682149%
11-14	99011-90J09-059	MANUAL, OWNER'S	1	Rp150.500	6 LANGUAGE MODEL:10
11-15	99011-90J11-059	MANUAL, OWNER'S	1	Rp150.500	6 LANGUAGE
11-16	99011-90J01-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:02
11-17	99011-90J02-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:03
11-18	99011-90J03-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:04
11-19	99011-90J04-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:05
11-20	99011-90J05-01T	MANUAL, OWNER'S	1	Rp150.500	3 LANGUAGE MODEL:06
11-21	99011-90J06-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE MODEL:07
11-22	99011-90J07-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE MODEL:08
11-23	99011-90J08-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE MODEL:09
11-24	99011-90J12-054	MANUAL, OWNER'S	1	Rp826.000	11 LANGUAGE MODEL:10
11-25	99011-90J11-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE
11-13	99011-90J08-059	MANUAL, OWNER'S	1	Rp150.500	6 LANGUAGE MODEL:09
11-12	99011-90J07-059	MANUAL, OWNER'S	1	Rp150.500	6 LANGUAGE MODEL:08
11-11	99011-90J06-04B	MANUAL, OWNER'S	1	Rp150.500	5 LANGUAGE MODEL:07
11-10	99011-90J05-04B	MANUAL, OWNER'S	1	Rp122.000	5 LANGUAGE MODEL:06
11-9	99011-90J04-04B	MANUAL, OWNER'S	1	Rp150.500	5 LANGUAGE MODEL:05
11-8	99011-90J03-04B	MANUAL, OWNER'S	1	Rp150.500	5 LANGUAGE MODEL:04
11-7	99011-90J02-04B	MANUAL, OWNER'S	1	Rp150.500	5 LANGUAGE MODEL:03
11-6	99011-92J00-04B	MANUAL, OWNER'S	1	Rp150.500	5 LANGUAGE MODEL:02
11-5	99011-90J05-051	MANUAL, OWNER'S	1	Rp150.500	8 LANGUAGE MODEL:06
11-4	99011-90J04-051	MANUAL, OWNER'S	1	Rp150.500	8 LANGUAGE MODEL:05
11-3	99011-90J03-051	MANUAL, OWNER'S	1	Rp150.500	8 LANGUAGE MODEL:04
11-2	99011-90J02-051	MANUAL, OWNER'S	1	Rp150.500	8 LANGUAGE MODEL:03
11-1	99011-92J00-051	MANUAL, OWNER'S	1	Rp150.500	8 LANGUAGE MODEL:02
