DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

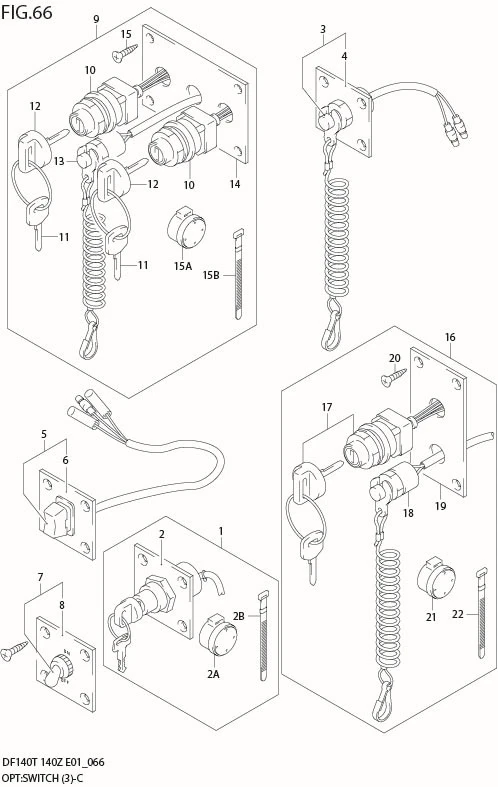

FIG 66 OPT:SWITCH (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37100-96J01-000 SUB: 37100-96J00-000	PANEL ASSY, IGNITION SW	1	Rp1.589.000	MODEL:06%
1-1	37100-96J01-000 SUB: 37100-93J00-000	PANEL ASSY, IGNITION SW	1	Rp1.589.000
2A	38500-93J90-000	?BUZZER ASSY, WARNING	1	Rp297.000	MODEL:06%
2B	DISCONTINUE SUB: 09407-08401-000	?CLAMP BUZZER	1	-	MODEL:06%
2	37139-99E00-000	?PANEL, IGNITION SW	1	Rp316.500
3	37803-93J06-000 SUB: 37803-93J03-000	PANEL ASSY, EMERGENCY SW	1	Rp578.000
4	DISCONTINUE SUB: 37825-99E00-000	?PANEL, EMERGENCY SW	1	-
5	DISCONTINUE SUB: 37805-93J00-000	PANEL ASSY, PTT SW	1	-
6	37855-99E00-000	?PANEL, PTT SW	1	Rp469.500
7	37210-93J00-000	PANEL ASSY, LIGHTING SW	1	Rp758.000
8	37212-93J00-000	?PANEL, LIGHTING SW	1	Rp316.500
9-1	37100-96J17-000 SUB: 37100-93J10-000	PANEL ASSY, DUAL ENGINE SW	1	Rp3.552.500
9-2	37100-96J17-000 SUB: 37100-96J13-000	PANEL ASSY, DUAL ENGINE SW	1	Rp3.552.500	MODEL:06%
10	37110-93J02-000 SUB: 37110-93J00-000	?SWITCH ASSY, IGNITION	2	Rp1.295.500
11-12	DISCONTINUE SUB: 37141-99EB0-000	??KEY (942)	2	-
11-11	DISCONTINUE SUB: 37141-99EA0-000	??KEY (941)	2	-
11-10	DISCONTINUE SUB: 37141-99E90-000	??KEY (940)	2	-
11-9	DISCONTINUE SUB: 37141-99E80-000	??KEY (939)	2	-
11-8	DISCONTINUE SUB: 37141-99E70-000	??KEY (938)	2	-
11-7	DISCONTINUE SUB: 37141-99E60-000	??KEY (937)	2	-
11-5	DISCONTINUE SUB: 37141-99E40-000	??KEY (935)	2	-
11-4	DISCONTINUE SUB: 37141-99E30-000	??KEY (934)	2	-
11-3	DISCONTINUE SUB: 37141-99E20-000	??KEY (933)	2	-
11-2	DISCONTINUE SUB: 37141-99E10-000	??KEY (932)	2	-
11-1	DISCONTINUE SUB: 37141-99E00-000	??KEY (931)	2	-
11-6	DISCONTINUE SUB: 37141-99E50-000	??KEY (936)	2	-
12	37143-99E00-000	??CAP, KEY	2	Rp26.000
13	37820-93J93-000	?SWITCH ASSY, EMERGENCY	1	Rp236.500
14	37139-99E10-000	?PANEL	1	Rp1.090.000
15A	38500-93J90-000	?BUZZER ASSY, WARNING	1	Rp297.000	MODEL:06%
15B	DISCONTINUE SUB: 09407-08401-000	?CLAMP BUZZER	1	-	MODEL:06%
15	03121-0516A-000	?SCREW	4	Rp11.500
16-1	37100-96J27-000 SUB: 37100-93J20-000	PANEL ASSY, ENGINE SW	1	Rp1.843.500
16-2	37100-96J27-000 SUB: 37100-96J23-000	PANEL ASSY, ENGINE SW	1	Rp1.843.500	MODEL:06%
17	37110-93J02-000 SUB: 37110-93J00-000	?SWITCH ASSY, IGNITION	1	Rp1.295.500
18	37820-93J05-000 SUB: 37820-93J03-000	?SWITCH ASSY, EMERGENCY	1	Rp520.000
19	37139-99E20-000	?PANEL	1	Rp605.000
20	03121-0516A-000	?SCREW	4	Rp11.500
21	38500-93J90-000	?BUZZER ASSY, WARNING	1	Rp297.000	MODEL:06%
22	DISCONTINUE SUB: 09407-08401-000	?CLAMP BUZZER	1	-	MODEL:06%
