DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

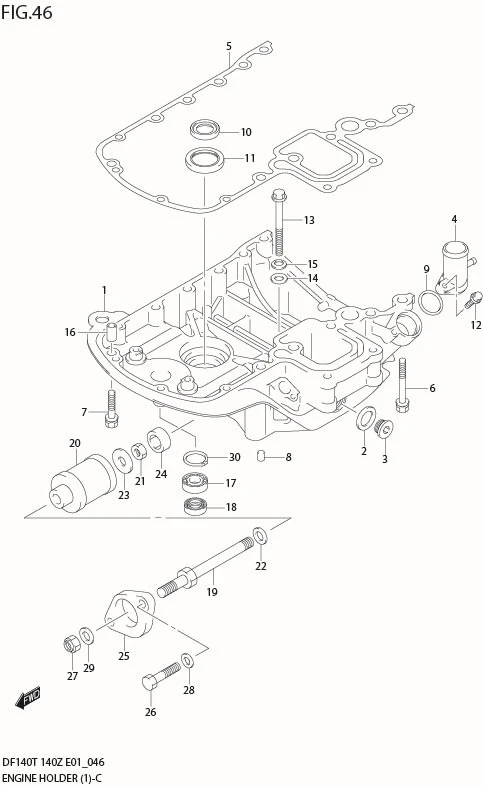

FIG 46 ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 51110-90821-0EP	HOLDER SET, ENGINE (BLACK)	1	-	DF140T:375472%
1-1	51110-90810-0EP	HOLDER, ENGINE (BLACK)	1	Rp5.495.500	INC.NO.2,3,10,11
1-3	DISCONTINUE SUB: 51110-90822-0EP	HOLDER SET, ENGINE (BLACK)	1	-	DF140T:513458%
2	09160-18031-000	?GASKET (18.5X28X2.6)	1	Rp19.500
3-1	09248-18006-000	?PLUG	1	Rp35.000
3-2	09248-18010-000	?PLUG	1	Rp50.500	DF140T:513458%
4	51115-90J00-000	UNION, WATER RETURN	1	Rp125.000
5	51211-90J10-000	GASKET, ENGINE HOLDER	1	Rp832.500	?51211-90J02
6	09116-08119-000	BOLT (8X70)	4	Rp21.500
7	09116-08128-000	BOLT (8X40)	4	Rp124.500	?09116-08098
8	09206-08001-000 SUB: 09206B08001N000	PIN	2	Rp5.500
9	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
10	09282-24003-000	SEAL, OIL	2	Rp53.500
11	09283-32044-000	SEAL, OIL	1	Rp121.500
12	01550-06257-000 SUB: 01550B06257N000	BOLT	1	Rp3.500
13	01550-08903-000	BOLT	1	-
14	09160-08039-000 SUB: 09160-08053-000	WASHER (8.5X19X2.3)	1	Rp14.000
15	09164-08020-000	WASHER, WAVE (8.4X17X1.8)	1	Rp13.000
16	04211-11129-000 SUB: 04211B11129N000	PIN	3	Rp2.000
17	09262-17019-000	BEARING, CLUTCH SHAFT	1	Rp163.500	DF140T:375472%
18	09289-18001-000	SEAL, CLUTCH SHAFT	1	Rp149.000	DF140T:375472%
19	54112-90J10-000	BOLT, UPPER MOUNT	2	Rp419.500	?54112-90J02
20	54130-90J31-000	MOUNT, UPPER	2	Rp886.500	?54130-90J20
21	DISCONTINUE SUB: 09140-12029-000	NUT	2	-
22	54113-90J00-000	WASHER (12.5X24X2.5)	2	Rp74.000	?09160-12099
23	09160-12110-000	WASHER (12.5X22X3.0)	2	Rp55.000	?09160-12101
24	54125-90J00-000	MOUNT, UPPER THRUST REVERSE	2	Rp31.000
25	54148-90J11-0EP SUB: 54148-90J01-0EP	COVER, UPPER MOUNT (BLACK)	2	Rp430.000
26-1	DISCONTINUE SUB: 09100-10157-000	BOLT (10X45)	4	-
26-2	09116-10176-000 SUB: 09116-10139-000	BOLT (W/WASHER)	4	Rp100.000	MODEL:06
27	09159-12014-000	NUT	2	Rp37.000
28	09160-10082-000	WASHER (10.5X19X2.0)	4	Rp12.000	MODEL02%05
29	09164-13007-000	WASHER (12.5X22X2.5)	2	-
30	08331-41359-000 SUB: 08331-41356-000	CIRCLIP	1	Rp18.500	DF140T:510851%
