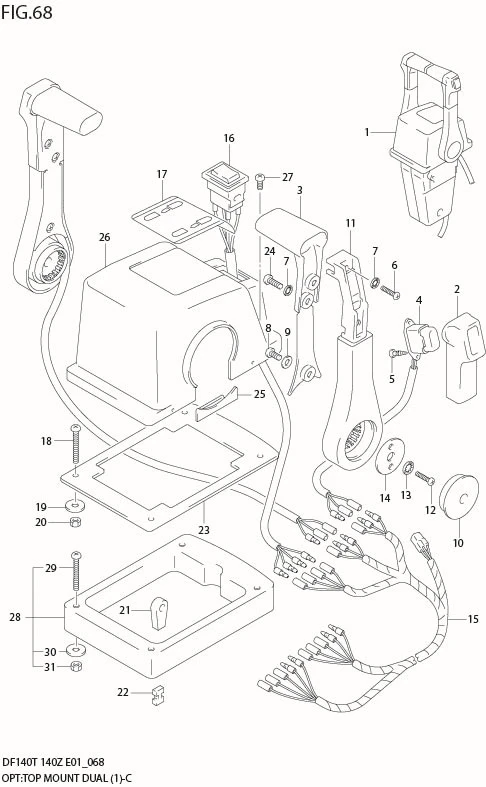

FIG 68 OPT:TOP MOUNT DUAL (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67200-92E14-000	REMOTE CONTROL ASSY	1	-	!67200-92E15
1-1	DISCONTINUE SUB: 67200-92E13-000	REMOTE CONTROL ASSY	1	-	!67200-92E14
1-5	67200-88L12-000 SUB: 67200-93J22-000	REMOTE CONTROL ASSY	1	Rp12.118.500	MODEL:05%
1-3	DISCONTINUE SUB: 67200-92E15-000	REMOTE CONTROL ASSY	1	-
1-4	67200-88L12-000 SUB: 67200-93J21-000	REMOTE CONTROL ASSY	1	Rp12.118.500	MODEL:05
2-1	67261-92E00-000	?GRIP, NO.1	2	Rp121.500
2-2	67261-93J00-000	?GRIP, NO.1	2	Rp134.500	FOR 67200-92E14
3-1	67263-92E00-000	?GRIP, NO.2	2	Rp97.500
3-2	67263-93J00-000	?GRIP, NO.2	2	Rp161.000	FOR 67200-92E14
4-1	37850-92E26-000	?SWITCH ASSY, PTT	2	Rp546.500
4-2	37850-93J10-000	?SWITCH ASSY, PTT	2	Rp1.368.000	FOR 67200-92E14
5	67295-92E10-000	?SCREW	4	Rp19.500
6	67296-88D10-000	?SCREW	2	Rp30.000
7	DISCONTINUE SUB: 67288-92E20-000	?WASHER	6	-
8	67296-92E70-000	?SCREW	2	Rp26.000
9	67288-92E40-000	?WASHER	2	Rp26.000
10	67257-92E00-000	?CAP, LEVER	2	Rp95.000
11-1	67251-92E00-000	?LEVER, HANDLE	2	-
11-2	67251-93J00-000	?LEVER, HANDLE	2	Rp1.018.000	FOR 67200-92E14
12	67296-92E60-000	?SCREW	4	Rp25.000
13	67288-92E30-000	?WASHER	4	Rp26.000
14	67253-92E00-000	?WASHER	2	Rp42.000
15-1	DISCONTINUE SUB: 36890-92E10-000	?WIRE HARNESS	1	-
15-2	36890-93J10-000	?WIRE HARNESS	1	Rp998.000	FOR 67200-93J21
16	37220-92E00-000	?SWITCH ASSY, MODE CHANGING	1	Rp1.171.500
17-1	67282-92E00-000	?DECAL	1	Rp103.000
17-2	67282-93J00-000	?DECAL	1	Rp159.500	FOR 67200-92E14
18	67296-92E30-000	?SCREW	4	Rp25.000
19	09160-05024-000	?WASHER	4	Rp9.500
20	DISCONTINUE SUB: 67287-92E00-000	?NUT	4	-
21	67275-95600-000	?END, CABLE	4	Rp70.500
22	67273-95601-000 SUB: 67273-95600-000	?SPACER	2	Rp35.000
23	DISCONTINUE SUB: 67273-92E10-000	?GROMMET	1	-
24	67295-92E00-000	?SCREW	4	Rp26.000
25	67271-92E00-000	?COVER	2	Rp55.000
26	67211-93J10-000	?COVER	1	Rp419.500
27	67296-92E70-000	?SCREW	2	Rp26.000	FOR 67200-92E15
28	DISCONTINUE SUB: 67500-93J10-000	KIT, REMOCON SPACER TWIN	1	-	FOR 67200-92E14
29	09125-05135-000	?SCREW	4	Rp19.000
30	09160-05029-000	?WASHER	4	Rp14.000
31	09140-05005-000	?NUT	4	Rp20.000
