DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

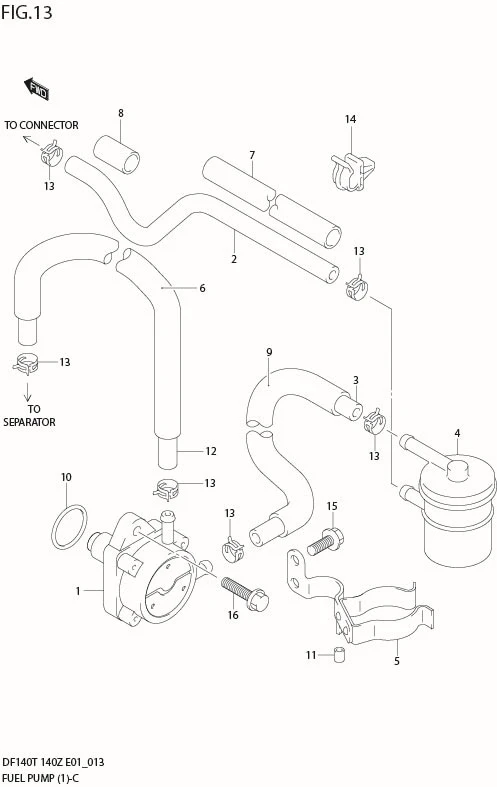

FIG 13 FUEL PUMP (DF140T/Z)

FIG 13 FUEL PUMP (DF140T/Z)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15100-90J11-000 SUB: 15100-90J10-000	PUMP, FUEL	1	Rp1.196.500	?15100-90J00
2	15191-90J10-000 SUB: 15191-90J00-000	HOSE, FUEL (CONN TO FILTER)	1	Rp319.500
3	15192-90J11-000 SUB: 15192-90J00-000	HOSE, FUEL (FILTER TO PUMP)	1	Rp163.000
4	15410-87J10-000	FILTER, FUEL	1	Rp108.000
5-1	DISCONTINUE SUB: 15420-90J01-000	BRACKET, FUEL FILTER	1	-
5-2	DISCONTINUE SUB: 15420-90J10-000	BRACKET, FUEL FILTER	1	-	MODEL:04%06
6	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!450
7	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!510
8	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!160
9	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!230
10	09280-26005-000 SUB: 09280B26005N000	O RING	1	Rp3.000
11	09320-05016-000	CUSHION	1	Rp13.500
12	09355-70125-600	HOSE, FUEL (PUMP TO SEPARATOR)	1	Rp76.500	L:600!530
13	09401-10409-000 SUB: 09401-11407-000	CLIP	6	Rp7.500
14	09403-11314-000	CLAMP	1	Rp24.500
15	01550-06167-000	BOLT	2	Rp16.500
16	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
