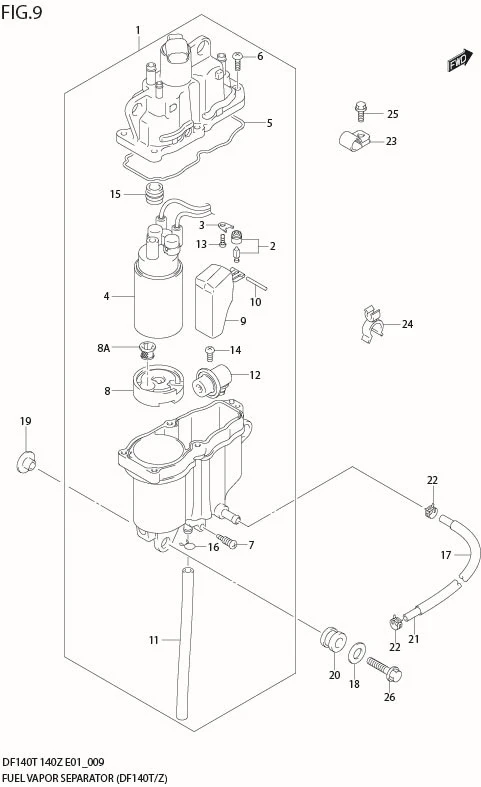

FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15600-90J01-000 SUB: 15600-90J00-000	SEPARATOR, FUEL VAPOR	1	Rp8.841.500
2	13370-99E00-000	?VALVE, NEEDLE	1	Rp534.000
3	DISCONTINUE SUB: 13373-39110-000	?PLATE	1	-
4	15200-90J00-000	?PUMP, FUEL	1	Rp4.025.000
5	15626-90J00-000	?SEAL	1	Rp143.500
6	15628-99E00-000	?SCREW (L:15)	5	Rp20.500
7	15629-99E10-000	?SCREW, DRAIN	1	Rp45.500
8	15641-90J00-000	?SPACER	1	Rp207.500
8A	15642-90J00-000	?FILTER	1	Rp83.000
9	15650-99E00-000	?FLOAT	1	Rp505.000
10	15654-99E00-000	?PIN	1	Rp20.500
11	DISCONTINUE SUB: 15683-87J00-000	?HOSE, DRAIN	1	-
12	15760-87J00-000	?REGULATOR	1	Rp2.443.000
13	02112-04083-000 SUB: 02112B04083N000	?SCREW	1	Rp7.500
14	DISCONTINUE SUB: 02112B0510AN000	?SCREW	1	-
15	15647-93J00-000	?BUSH	1	Rp96.000
16	13671-13F00-000	?CLIP	1	-
17	18498-90J00-000	PROTECTOR, EVAP HOSE (L:290)	1	Rp22.000	L:290!140
18	09160-06006-000 SUB: 09160-06084-000	WASHER (6.5X18X1.6)	3	Rp11.000	MODEL:02%05
19	09169-06075-000	WASHER	3	Rp19.500
20	09320-09059-000 SUB: 09320-09039-000	CUSHION	3	Rp26.000
21	09352-50823-600 SUB: 09352-50823L600	HOSE	1	Rp7.000	L:600!340
22	09401-08412-000	CLIP	2	Rp20.000
23	09403-13413-000 SUB: 09403-13408-000	CLAMP	1	Rp41.500
24	DISCONTINUE SUB: 09408-00124-000	CLAMP	1	-
25	01550-06127-000	BOLT	1	Rp17.000
26-1	01550-06257-000 SUB: 01550B06257N000	BOLT	3	Rp3.500
26-2	DISCONTINUE SUB: 09116-06202-000	BOLT (W/WASHER)	3	-	MODEL:06%
