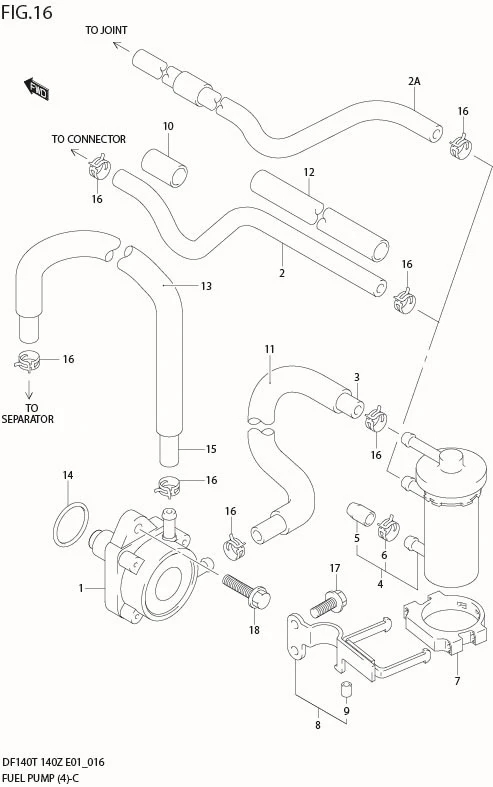

FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15100-90J11-000 SUB: 15100-90J1V-000	PUMP, FUEL	1	Rp1.196.500
2	15191-90J10-000	HOSE, FUEL (CONN TO FILTER)	1	Rp319.500
2A-1	15190-90J20-000	HOSE, FUEL	1	Rp495.500	MODEL:07%
2A-2	15190-90J30-000	HOSE, FUEL (JOINT TO FILTER)	1	Rp949.000	DF140T:110001%
3	15192-90J11-000	HOSE, FUEL (FILTER TO PUMP)	1	Rp163.000
4	15410-87J30-000	FILTER, FUEL	1	Rp161.000
5	15419-87J00-000	?CAP, FUEL FILTER	1	Rp52.000
6	09401-11423-000	?CLIP, FILTER CAP	1	Rp19.500
7	15422-96J01-000 SUB: 15422-96J00-000	CLAMP, FUEL FILTER	1	Rp60.500
8	15420-90J30-000	BRACKET, FUEL FILTER	1	Rp70.500
9	09320-05016-000	?CUSHION, BRACKET	1	Rp13.500
10-1	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!160
10-2	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!180
11	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!230
12	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!510
13	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!450
14	09280-26005-000 SUB: 09280B26005N000	O RING (D:2.4,ID:26.2)	1	Rp3.000
15-1	09355-70129-600	HOSE, FUEL (PUMP TO SEPARATOR)	1	Rp342.000	L:600!540
15-2	09343-70503-600	HOSE, FUEL (PUMP TO SEPARATOR)	1	Rp304.000	DF140T:110001%
16-1	09401-11423-000	CLIP	6	Rp19.500
16-2	09401-11423-000	CLIP	5	Rp19.500	MODEL:07%
17	01550-06167-000	BOLT	2	Rp16.500
18	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
