DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

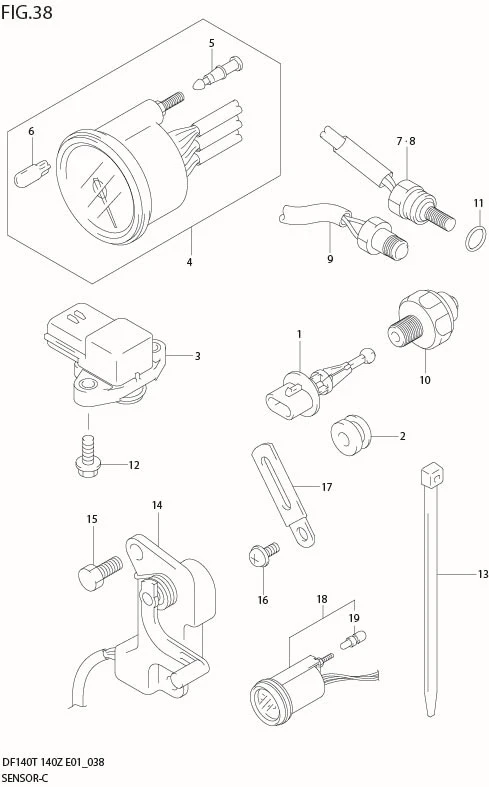

FIG 38 SENSOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13650-52G00-000	SENSOR, INLET AIR TEMP	1	Rp762.500
2	13655-87J01-000 SUB: 13655-87J00-000	GROMMET, AIR TEMP SENSOR	1	Rp31.000
3-1	18590-68H00-000 SUB: 18590-72F21-000	SENSOR, PRESSURE	1	Rp1.998.500
3-2	18590-68H00-000	SENSOR, PRESSURE	1	Rp1.998.500	MODEL:08%
4-1	DISCONTINUE SUB: 34200-99E01-000	TACHOMETER	1	-	?34200-99E00
4-2	34200-93J02-000 SUB: 34200-93J00-000	TACHOMETER ASSY	1	Rp2.161.000	BLACK
4-3	34200-93J14-000 SUB: 34200-93J11-000	TACHOMETER ASSY	1	Rp2.439.500	WHITE
5	36615-96300-000	?TERMINAL, RESIN	4	Rp11.000
6-1	09471-12179-000	?BULB	1	Rp25.500
6-2	09471-12077-000 SUB: 09471-12077L000	?BULB	1	Rp6.000	FOR 34200-93J00
7	34830-87JA0-000 SUB: 34830-87J10-000	SENSOR, EXHAUST TEMP	1	Rp814.500	?34830-87J00
8	34830-87JA0-000 SUB: 34830-87J10-000	SENSOR, TEMP	1	Rp814.500	?34830-87J00
9	34830-87J20-000	SENSOR ASSY, EXHAUST TEMP	2	Rp526.000	MODEL:04%
10	37820-99E02-000 SUB: 37820-99E01-000	SWITCH, OIL PRESSURE	1	Rp230.000
11	09280-09005-000	O RING (D:1.9 ID:8.6)	2	Rp23.000	MODEL:02,03
12	02162-05207-000	SCREW	2	Rp12.500
13-1	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	1	Rp13.000	FOR TEMP SENSOR
13-2	09407-14407-000	CLAMP (L:145)	1	Rp18.500	FOR TRIM SENDER
14	34801-99E05-000 SUB: 34801-99E04-000	SENDER ASSY, TRIM	1	Rp2.526.500
15	09100-06113-000	BOLT (6X16)	2	Rp11.500
16	09125-06063-000	SCREW (6X10)	1	Rp15.000
17	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
18-1	DISCONTINUE SUB: 34800-90J01-000	METER ASSY, TRIM	1	-	?34800-90J00
18-2	34800-93J02-000 SUB: 34800-93J00-000	METER ASSY, TRIM	1	Rp1.018.000	BLACK
18-3	34800-93J13-000 SUB: 34800-93J11-000	METER ASSY, TRIM	1	Rp1.156.000	WHITE
19-1	09471-12180-000	?BULB	1	Rp25.000
19-2	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-	FOR 34200-93J00
