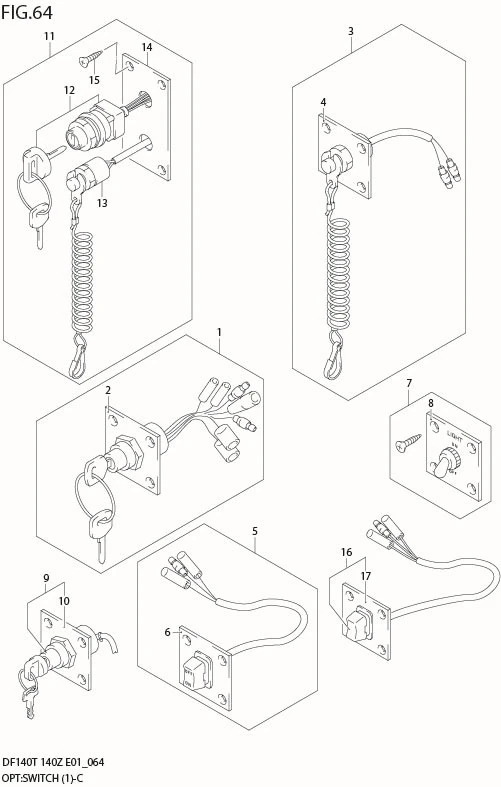

FIG 64 OPT:SWITCH (DF140T MODEL:02%04)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37100-99E00-000 SUB: 37100-92E00-000	IGNITION SWITCH SET	1	Rp629.500
2	37139-92E00-000	?PANEL, IGNITION SW	1	Rp212.000
3-1	37803-99E03-000 SUB: 37803-92E00-000	EMERGENCY SWITCH SET	1	Rp398.500
3-2	37803-99E03-000 SUB: 37803-99E00-000	EMERGENCY SWITCH SET	1	Rp398.500	MODEL:04
4-1	37825-92E00-000	?PANEL, EMERGENCY SW	1	Rp388.500
4-2	DISCONTINUE SUB: 37825-99E00-000	?PANEL, EMERGENCY SW	1	-	FOR 37803-99E00
5	37805-92E00-000	PTT SWITCH SET	1	Rp646.500
6	37855-92E00-000	?PANEL, PTT SW	1	-
7	37210-93J00-000 SUB: 37210-92E00-000	LIGHTING SW SET	1	Rp758.000
8	37212-92E00-000	?PANEL, LIGHTING SW	1	Rp212.000
9-1	37100-99E00-000 SUB: 37100-92E01-000	IGNITION SWITCH SET	1	Rp629.500
9-2	37100-99E00-000	IGNITION SWITCH SET	1	Rp629.500	MODEL:04
10-1	37139-92E00-000 SUB: 37139-92E01-000	?PANEL, IGNITION SWITCH	1	Rp212.000
10-2	37139-99E00-000	?PANEL, IGNITION SWITCH	1	Rp316.500	FOR 37100-99E00
11	37100-99E23-000 SUB: 37100-99E20-000	PANEL ASSY, ENGINE SW	1	Rp743.000	MODEL:04
12	37110-93J02-000 SUB: 37110-93J00-000	?SWITCH ASSY, IGNITION	1	Rp1.295.500
13	37820-92E05-000 SUB: 37820-92E00-000	?SWITCH ASSY, EMERGENCY	1	Rp369.500
14	37139-99E20-000	?PANEL	1	Rp605.000
15	03121-0516A-000 SUB: 03121-05163-000	?SCREW	4	Rp11.500
16	37805-99E00-000	PANEL ASSY, PTT SW	1	Rp532.500	MODEL:04
17	37855-99E00-000	?PANEL	1	Rp469.500
