  5. FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)

DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVERFIG 4 CRANKSHAFTFIG 5 TIMING CHAINFIG 6 CAMSHAFTFIG 7 INTAKE MANIFOLDFIG 8 SILENCERFIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTATFIG 21 THROTTLE BODYFIG 22 OIL PUMPFIG 23 OIL FILTERFIG 24 OIL PANFIG 25 CLUTCH SHAFTFIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTORFIG 35 MAGNETOFIG 36 RECTIFIERFIG 37 IGNITION COILFIG 38 SENSORFIG 39 HARNESSFIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKETFIG 43 SWIVEL BRACKETFIG 44 TRIM CYLINDERFIG 45 PTT MOTORFIG 46 ENGINE HOLDERFIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSINGFIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVERFIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINKFIG 59 OPT:METERFIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESSFIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

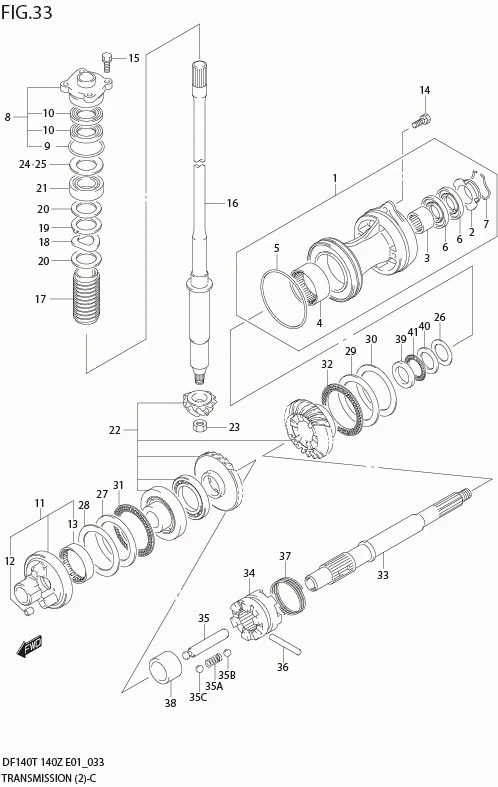

FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)

FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)
No No. Part Description Qty Price Per Pcs Remarks
1-2 56120-92J12-0EP HOUSING, PROP SFT BRG (BLACK) 1 Rp6.280.500 DF140Z:421023%
1-1 DISCONTINUE
SUB: 56120-92J11-0EP		 HOUSING, PROP SFT BRG (BLACK) 1 -
2 56123-92J00-000 ?WASHER, OIL SEAL PROTECTOR 1 Rp54.500
3 09263-30051-000 ?BEARING (30X37X26) 1 Rp269.500
4 09263-50001-000 ?BEARING (50X62X25) 1 Rp466.000
5 09280-97001-000 ?O RING (D:3.5 ID:95) 1 Rp28.000
6 09282-30007-000 ?SEAL OIL 2 Rp63.000
7 DISCONTINUE
SUB: 09387-52001-000		 ?RING, OIL SEAL 1 -
8 56130-90J00-000 HOUSING, DRIVE SHAFT BRG 1 Rp657.500
9 09280-46004-000 ?O RING (D:3.5 ID:45.7) 1 Rp21.000
10 09282-24004-000 ?SEAL, OIL 2 Rp43.000
11-1 56140-92J40-000
SUB: 56140-92J10-000		 HOUSING, REV GEAR BRG 1 Rp1.595.500
11-2 56140-92J40-000
SUB: 56140-92J30-000		 HOUSING, REV GEAR BRG 1 Rp1.595.500 DF140Z/WZ:680234%
12-1 09206-09012-000 ?PIN, KNOCK 2 Rp22.000
12-2 09206-09012-000 ?PIN, KNOCK 1 Rp22.000 DF140Z:421026%
13 09263-45004-000 ?BEARING (45X52X16) 1 Rp286.500
14 09117-08047-000 BOLT (8X30) 2 Rp44.500
15 09117-08110-000
SUB: 09117-08057-000		 BOLT (8X25) 4 Rp33.000
16-4 57110-90J30-000 SHAFT, DRIVE (X) 1 Rp6.179.000
16-6 57110-92J70-000
SUB: 57110-92J51-000		 SHAFT, DRIVE (X) 1 Rp6.665.500 DF140Z/WZ:680234%
16-5 57110-92J30-000 SHAFT, DRIVE (X) 1 - MODEL:04%06
16-3 57110-92J60-000
SUB: 57110-92J41-000		 SHAFT, DRIVE (L) 1 Rp4.259.500 DF140Z/WZ:680234%
16-2 57110-92J60-000
SUB: 57110-92J20-000		 SHAFT, DRIVE (L) 1 Rp4.259.500 MODEL:04%06
16-1 57110-90J20-000 SHAFT, DRIVE (L) 1 Rp4.954.500
17 57133-90J02-000
SUB: 57133-90J01-000		 COLLAR, DRIVE SHAFT 1 Rp153.000
18 09164-31001-000 WASHER, WAVE 1 Rp43.000 MODEL:02,03
19 09169-31001-000 WASHER 1 Rp39.500 MODEL:02,03
20 09181-31001-000 WASHER (31X46X2.0) 2 Rp40.000 MODEL:02,03
21 09265-25046-000
SUB: 09265-25040-000		 BEARING 1 Rp663.500
22-1 DISCONTINUE
SUB: 57300-92810-000		 PINION/GEAR SET 1 -
22-2 DISCONTINUE
SUB: 57300-92830-000		 PINION/GEAR SET 1 - DF140Z/WZ:680234%
22-3 57300-92850-000 PINION/GEAR SET 1 Rp10.461.500 MODEL:07%
23-1 09140-14024-000 NUT 1 Rp23.000
23-3 09140-14024-000 NUT 1 Rp23.000 MODEL:07%
23-2 DISCONTINUE
SUB: 09140-14021-000		 NUT 1 - DF140Z:251009%
24 57500-87873-000 SHIM SET, DRIVE SHAFT 1 Rp495.500
25-14 09181-41014-000 ?SHIM (41X52X1.15) 1 Rp44.000
25-13 09181-41013-000 ?SHIM (41X52X1.10) 1 Rp44.000
25-12 09181-41012-000 ?SHIM (41X52X1.05) 1 Rp44.000
25-11 09181-40195-000 ?SHIM (41X52X1.00) 1 Rp35.000
25-10 09181-41010-000 ?SHIM (41X52X0.95) 1 Rp44.000
25-9 09181-41009-000 ?SHIM (41X52X0.90) 1 Rp44.000
25-8 09181-41008-000 ?SHIM (41X52X0.85) 1 Rp44.000
25-6 09181-41006-000 ?SHIM (41X52X0.75) 1 Rp44.000
25-5 09181-41005-000 ?SHIM (41X52X0.70) 1 Rp44.000
25-4 09181-41004-000 ?SHIM (41X52X0.65) 1 Rp44.000
25-3 DISCONTINUE
SUB: 09181-41003-000		 ?SHIM (41X52X0.60) 1 -
25-2 DISCONTINUE
SUB: 09181-41002-000		 ?SHIM (41X52X0.55) 1 -
25-1 09181-40186-000 ?SHIM (41X52X0.50) 1 Rp32.000
25-7 DISCONTINUE
SUB: 09181-40190-000		 ?SHIM (41X52X0.80) 1 -
26-9 09160M35010-000
SUB: 09160-35010-000		 WASHER (35X46X1.15) 1 Rp9.500
26-8 09160M35003-000
SUB: 09160-35003-000		 WASHER (35X46X1.1) 1 Rp9.000
26-7 09160M35009-000
SUB: 09160-35009-000		 WASHER (35X46X1.05) 1 Rp14.000
26-6 09160M35002-000
SUB: 09160-35002-000		 WASHER (35X46X1.0) 1 Rp9.500
26-4 09160M35006-000
SUB: 09160-35006-000		 WASHER (35X46X0.9) 1 Rp8.500
26-3 DISCONTINUE
SUB: 09160B35013N000		 WASHER (35X46X0.8) 1 -
26-2 09160-35014-000 WASHER (35X46X0.7) 1 Rp44.500
26-1 09160M35015-000
SUB: 09160-35015-000		 WASHER (35X46X0.6) 1 Rp6.500 PROP SAFT REV
26-5 09160M35008-000
SUB: 09160-35008-000		 WASHER (35X46X0.95) 1 Rp14.500
27 09160-60011-000 WASHER (60X85X3.0) 1 Rp468.000 REV GEAR
28-5 09160-60005-000 WASHER (60X85X1.2) 1 Rp128.500
28-7 09160-60007-000 WASHER (60X85X1.4) 1 Rp128.500
28-6 09160-60006-000 WASHER (60X85X1.3) 1 Rp128.500
28-4 09160-60004-000 WASHER (60X85X1.1) 1 Rp128.500
28-3 09160-60003-000 WASHER (60X85X1.0) 1 Rp128.500
28-2 09160-60009-000 WASHER (60X85X0.9) 1 Rp94.500
28-1 09160-60008-000 WASHER (60X85X0.8) 1 Rp112.000
29-1 DISCONTINUE
SUB: 09160-70004-000		 WASHER (70X95X3.7) 1 - FWD GEAR
29-2 09160-70005-000 WASHER (70X95X2.0) 1 Rp356.500 FWD GEAR
30-9 DISCONTINUE
SUB: 09181-70004-000		 SHIM (70X95X1.0) 1 -
30-2 DISCONTINUE
SUB: 09181-70009-000		 SHIM (70X95X0.65) 1 -
30-8 09181-70012-000 SHIM (70X95X0.95) 1 Rp125.000
30-7 DISCONTINUE
SUB: 09181-70003-000		 SHIM (70X95X0.9) 1 -
30-6 09181-70011-000 SHIM (70X95X0.85) 1 Rp78.000
30-4 DISCONTINUE
SUB: 09181-70010-000		 SHIM (70X95X0.75) 1 -
30-3 DISCONTINUE
SUB: 09181-70001-000		 SHIM (70X95X0.7) 1 -
30-1 DISCONTINUE
SUB: 09181-70006-000		 SHIM (70X95X0.6) 1 -
30-5 DISCONTINUE
SUB: 09181-70002-000		 SHIM (70X95X0.8) 1 -
31 09269-60001-000 BEARING (60X85X3.0) 1 Rp331.000 REV
32 09269-70001-000 BEARING (70X95X4.0) 1 Rp535.500 FWD
33-1 DISCONTINUE
SUB: 57610-92J10-000		 SHAFT, PROPELLER 1 -
33-2 57610-92J31-000
SUB: 57610-92J30-000		 SHAFT, PROPELLER 1 Rp4.582.500 DF140Z/WZ:680234%
33-3 57610-92J31-000 SHAFT, PROPELLER 1 Rp4.582.500 MODEL:08%
34-1 DISCONTINUE
SUB: 57621-92J00-000		 SHIFTER, CLUTCH DOG 1 -
34-2 57621-92J20-000
SUB: 57621-92J10-000		 SHIFTER, CLUTCH DOG 1 Rp1.162.000 DF140Z/WZ:680234%
35-1 DISCONTINUE
SUB: 57631-87E00-000		 PIN, CONNECTOR 1 -
35C 06111-11004-000 BALL, DETENT NO.2 2 Rp12.500 DF140Z/WZ:680234%
35B 06111M07004-000
SUB: 06111-07004-000		 BALL, DETENT NO.1 2 Rp3.000 DF140Z/WZ:680234%
35A 09440-09040-000 SPRING, DETENT 1 Rp26.500 DF140Z/WZ:680234%
35-2 57631-92J10-000
SUB: 57631-92J00-000		 PIN, CONNECTOR 1 Rp365.500 DF140Z/WZ:680234%
36 09202-07002-000 PIN 1 Rp35.000
37-1 09440-50002-000 SPRING 1 Rp14.500
37-2 09440-49004-000 SPRING 1 Rp21.500 MODEL:03%
38 57616-92J00-000 SPACER, CLUTCH DOG FWD 1 Rp456.500
39 09160-30055-000 WASHER (30X47X6.0) 1 Rp789.500 PROP SAFT REV
40 09160-30056-000 WASHER (32X47X3.0) 1 Rp244.500 PROP SAFT REV
41 09269-30014-000 BEARING (30X47X2.0) 1 Rp105.500 PROP SAFT REV
