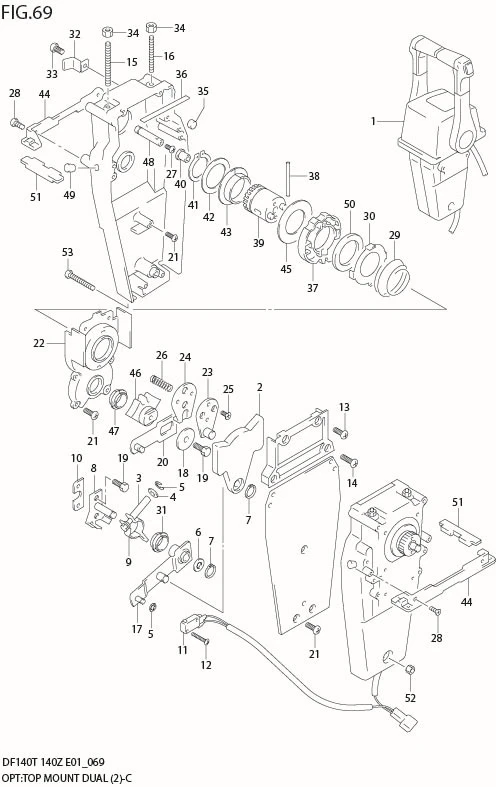

FIG 69 OPT:TOP MOUNT DUAL (2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67200-92E14-000	REMOTE CONTROL ASSY, TWIN	1	-	!67200-92E15
1-1	DISCONTINUE SUB: 67200-92E13-000	REMOTE CONTROL ASSY, TWIN	1	-	!67200-92E14
1-5	67200-88L12-000 SUB: 67200-93J22-000	REMOTE CONTROL ASSY, TWIN	1	Rp12.118.500	MODEL:05%
1-3	DISCONTINUE SUB: 67200-92E15-000	REMOTE CONTROL ASSY, TWIN	1	-
1-4	67200-88L12-000 SUB: 67200-93J21-000	REMOTE CONTROL ASSY, TWIN	1	Rp12.118.500	MODEL:05
2	67222-92E00-000	?DUAL PLATE	2	Rp180.000
3	67223-92E00-000	?BRAKE ADJUST	2	Rp60.500
4	67288-92E00-000	?WASHER	2	Rp24.500
5	67292-94300-000	?E RING	8	Rp11.000
6	67288-92E10-000	?WASHER	2	Rp25.000
7	67291-92E00-000	?SNAP RING	4	Rp30.500
8	67221-92E00-000	?SHIFT ASSY	2	Rp175.500
9	67224-92E00-000	?BRAKE ARM ASSY	2	Rp121.500
10	67294-92E00-000	?SPACER	2	Rp96.000
11	37721-92E11-000 SUB: 37721-92E10-000	?SWITCH ASSY, N/R	1	Rp829.000
12	67296-92E10-000	?SCREW	4	Rp17.000
13	67296-88D10-000	?SCREW	4	Rp30.000
14	67296-92E20-000	?SCREW	4	Rp25.000
15	67226-92E00-000	?BOLT, STOPPER FRONT	2	Rp65.000
16	67226-92E10-000	?BOLT, STOPPER RR	2	Rp65.000
17	67240-92E00-000	?ARM ASSY, THROTTLE	2	Rp307.500
18	67228-92E00-000	?WASHER	2	Rp42.000
19	67286-92E00-000	?BOLT	6	Rp25.000
20	67230-92E00-000	?ARM ASSY, SHIFT	2	Rp81.000
21	DISCONTINUE SUB: 09125-05042-000	?SCREW	16	-	5X10
22	67234-92E00-000	?CASE, GEAR	2	Rp236.500
23	67245-92E00-000	?LEVER ASSY, THROTTLE	2	Rp180.000
24	67227-92E00-000	?STOPPER	2	Rp96.000
25	09126-06006-000	?SCREW	4	Rp12.500
26	67225-92E00-000	?SPRING	2	Rp25.000
27	09125-04004-000	?SCREW	2	Rp9.500
28	67296-95610-000	?SCREW	4	Rp23.500
29	67233-92E00-000	?SPRING	2	Rp103.000
30	67235-92E00-000	?PLATE, SHIFT LOCK	2	Rp60.500
31	67232-95620-000	?BUSH	2	Rp47.000
32	67269-92E01-000 SUB: 67269-92E00-000	?BRACKET	2	Rp49.000
33	67296-88D10-000	?SCREW	2	Rp30.000
34	09140-06020-000	?NUT	4	Rp13.500
35	67236-92E00-000	?ROLLER	2	Rp32.500
36	67237-92E01-000	?SPRING	12	Rp36.500
37	67238-92E00-000	?GEAR, DRIVE	2	Rp286.500
38	67239-92E00-000	?PIN	2	Rp104.500
39	67246-92E00-000	?SHAFT, DRIVE	2	Rp394.500
40	67252-92E00-000	?BUSH	2	Rp43.500
41	67291-92E10-000	?SNAP RING	2	Rp86.500
42	67253-92E10-000	?WASHER	2	Rp30.500
43	67252-92E10-000	?BUSH	2	Rp34.000
44	67274-92E00-000	?FLANGE	2	Rp360.000
45	67253-95600-000	?WASHER	2	Rp37.500
46	67231-92E00-000	?GEAR, SHIFT	2	Rp127.000
47	67232-95600-000	?BUSH	2	Rp44.000
48	67241-92E00-000	?ROD, FREE ACC	2	Rp63.000
49	67243-92E00-000	?GROMMET	2	Rp47.500
50	67239-92E10-000	?PLATE, SHIFT PIN	2	Rp70.000
51	67272-92E10-000	?SEAL, FLANGE	2	Rp23.500
52	67287-92E10-000	?NUT	1	Rp75.000
53	67296-92E80-000	?SCREW	3	Rp46.500
