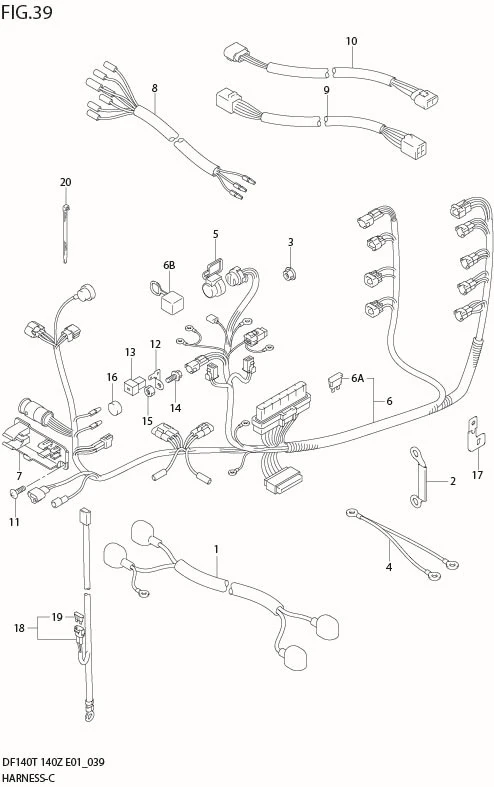

FIG 39 HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33810-90J30-000 SUB: 33810-90J10-000	CABLE, STARTER MOTOR	1	Rp1.843.500
2	DISCONTINUE SUB: 33831-90J00-000	PLATE, PTT RELAY	1	-	MODEL:02,03
3	08316-10087-000	NUT	1	Rp17.000
4	33832-90J00-000	CABLE, TRIM RELAY GROUND	1	Rp76.000	MODEL:02,03
5	33634-99E00-000	CAP, SERVICE CONNECTOR	1	Rp44.500	MODEL:02%07
6-1	DISCONTINUE SUB: 36610-90J00-000	HARNESS ASSY, WIRING	1	-
6-2	DISCONTINUE SUB: 36610-90J20-000	HARNESS ASSY, WIRING	1	-	MODEL:03
6-3	DISCONTINUE SUB: 36610-90J30-000	HARNESS ASSY, WIRING	1	-	MODEL:04
6-4	36610-90J60-000 SUB: 36610-90J50-000	HARNESS ASSY, WIRING	1	Rp3.728.500	MODEL:05%07
6-5	36610-90J92-000 SUB: 36610-90J80-000	HARNESS, ASSY WIRING	1	Rp7.245.000	MODEL:08%09
6-6	36610-90J82-000 SUB: 36610-90J81-000	HARNESS, ASSY WIRING	1	Rp6.480.000	MODEL:10%
6A	09481-30501-000 SUB: 09481M30501-000	?FUSE (30A)	1	Rp13.000
6B	33634-96J00-000	?CAP, SERVICE CONNECTOR	1	Rp49.500	MODEL:08%
7-2	36616-90J10-000	HOLDER, REMOCON CONNECTOR	1	Rp52.500	MODEL:05%
7-1	36616-90J00-000	HOLDER, REMOCON CONNECTOR	1	Rp36.000
8	36630-92E00-000	WIRE, INSTRUMENT	1	Rp492.000	MODEL:02%04
9	36682-90J00-000	WIRE, TRIM METER	1	Rp423.500	MODEL:02%04
10	36682-92E00-000	WIRE, MONITOR GAUGE EXT	1	Rp879.500	MODEL:02%04
11	02142-0616A-000 SUB: 02142B06167N000	SCREW	2	Rp3.000
12	36865-90J00-000	TERMINAL, MAIN FUSE	2	Rp70.500
13	09481M60401-000	FUSE, SLOW BLOW	2	Rp66.000
14	01570-06107-000	BOLT	2	Rp16.000
15	08310-00067-000	NUT	2	Rp13.000
16	09251-09002-000	CAP	2	Rp22.000
17	36617-90J00-000	BRACKET, JOINT CONNECTOR	1	Rp60.000	MODEL:04%
18-1	36625-93J01-000 SUB: 36625-93J00-000	LEAD, BATTERY	1	Rp485.500	L:3700 MODEL:05%
18-2	36625-93J10-000	LEAD, BATTERY	1	Rp564.500	OPT
19	09481-15501-000 SUB: 09481M15501-000	?FUSE (15A)	1	Rp12.000
20	09407-14407-000	CLAMP, BATTERY LEAD	2	Rp18.500	MODEL:05%
