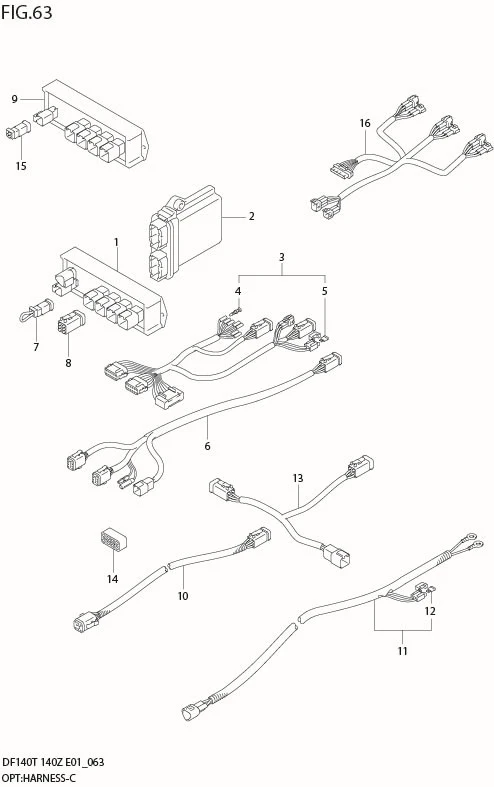

FIG 63 OPT:HARNESS (MODEL:08%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 34921-98J00-000	UNIT, ACTIVE HUB	1	-
2	DISCONTINUE SUB: 34922-98J02-000	UNIT, INTERFACE	1	-
3	DISCONTINUE SUB: 36661-98J00-000	HARNESS ASSY, INTERFACE UNIT	1	-
4	36615-96300-000	?TERMINAL, RESIN	7	Rp11.000
5	09481-05501-000	?FUSE (5A)	1	Rp17.000
6	36664-98J00-000	HARNESS ASSY, 3" GAUGE	1	Rp2.214.500
7	DISCONTINUE SUB: 36665-98J00-000	WIRE, JUMPER	1	-
8	DISCONTINUE SUB: 36666-98J10-000	CAP, 6 PIN CONNECTOR	1	-
9	DISCONTINUE SUB: 34921-98J10-000	UNIT, PASSIVE HUB	1	-
10-1	DISCONTINUE SUB: 36662-98J00-000	HARNESS ASSY, HUB S	1	-	L:1000
10-2	DISCONTINUE SUB: 36662-98J10-000	HARNESS ASSY, HUB L	1	-	L:6500
11-1	36663-98J00-000	HARNESS ASSY, ACTIVE HUB PWR S	1	Rp856.000	L:2500
11-2	36663-98J10-000	HARNESS ASSY, ACTIVE HUB PWR L	1	Rp1.315.500	L:6000
12	09481-05501-000	?FUSE (5A)	1	Rp17.000
13	DISCONTINUE SUB: 36664-98J10-000	HARNESS ASSY, 2" GAUGE	1	-
14	DISCONTINUE SUB: 36666-98J00-000	CAP, 8 PIN CONNECTER	1	-
15	DISCONTINUE SUB: 36667-98J00-000	CAP, 2 PIN CONNECTER	1	-
16	DISCONTINUE SUB: 36661-93J00-000	ADAPTER, INTERFACE MODULE	1	-
