DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

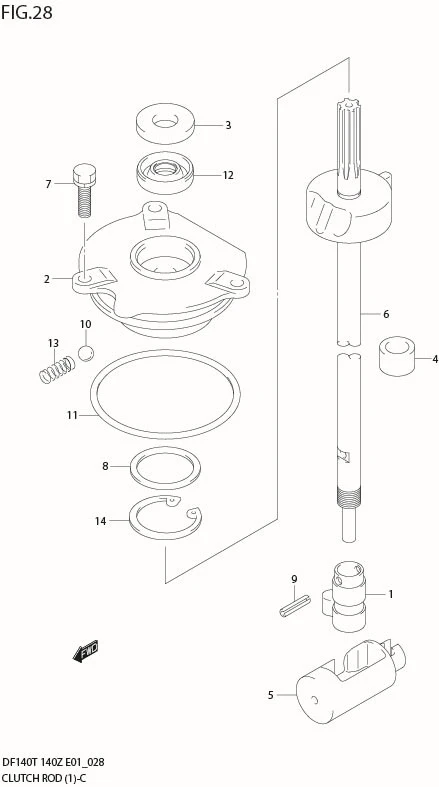

FIG 28 CLUTCH ROD (DF140T/WT)

FIG 28 CLUTCH ROD (DF140T/WT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25131-90J01-000	YOKE, SHIFTER	1	Rp545.000
2	25141-90J03-000	HOUSING, SHIFT R5OD GUIDE	1	Rp671.500
3	25222-90J01-000 SUB: 25222-90J00-000	COVER, SFT GUIDE HSG OIL SEAL	1	Rp17.500
4	25232-90J00-000	MAGNET, GEAR CASE	1	Rp46.000
5	25321-90J00-000	SLIDER, SHIFT HORIZONTAL	1	Rp946.500
6-1	25350-90J01-000	ROD, SHIFT ASSIST (L)	1	Rp640.500
6-2	25350-90J11-000	ROD, SHIFT ASSIST (X)	1	Rp686.000
7	09117-06031-000	BOLT (6X20)	3	Rp22.000
8	09160-30037-000	WASHER (30X38X1.9)	1	Rp28.500
9	09205-04014-000	PIN	1	Rp10.500
10	09260-10005-000	BALL	1	Rp15.500
11	09280-69001-000	O RING (D:3.1,ID:68.5)	1	Rp24.000
12	09283-10011-000	SEAL, DUST	1	Rp36.000
13	09440-07033-000	SPRING	1	Rp13.000
14	08331-41386-000	CIRCLIP	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
