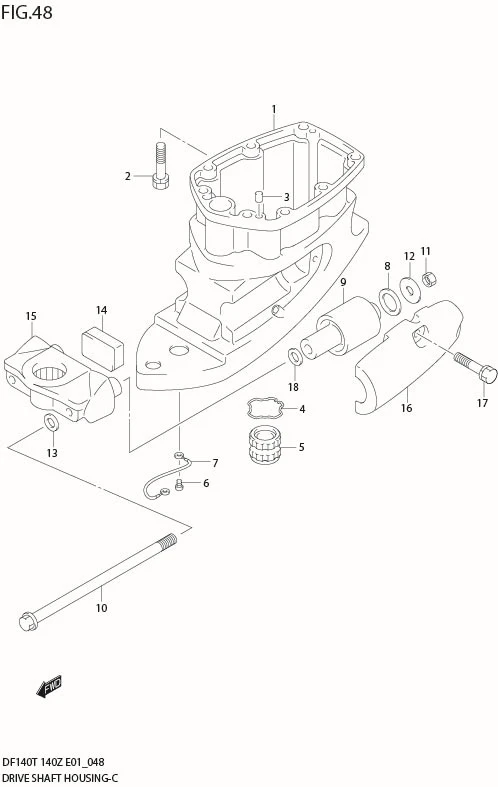

FIG 48 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	52111-90J12-0EP	HOUSING, DRIVE SHAFT (BLACK)	1	Rp8.860.500	TYPE:X
1-1	52111-90J02-0EP	HOUSING, DRIVE SHAFT (BLACK)	1	Rp7.369.000	TYPE:L
2-1	09117-10034-000	BOLT (10X45)	8	-
2-2	09117-10058-000	BOLT (10X45)	8	Rp31.000	MODEL:05%
3	09202-08006-000	PIN, KNOCK	2	Rp27.000
4	09387-45001-000	CIRCLIP	1	Rp27.000	TYPE:X
5	57130-92J01-000	BUSH, DRIVE SHAFT	1	Rp719.500	TYPE:X
6	09125-06063-000	SCREW (6X10)	2	Rp15.000
7-1	36895-87D01-000	LEAD	1	Rp116.000
7-2	36895-87D10-000	LEAD (SWIVEL TO HSG)	1	Rp121.500	DF140T:682149%
8	DISCONTINUE SUB: 54121-87D00-000	DAMPER, REVERSE STOPPER LOWER	2	-
9	54160-90J20-000	MOUNT, LOWER	2	Rp779.500
10	54166-90J11-000	BOLT (12X231)	2	Rp447.000	?09100-12079
11	09159-12014-000	NUT	2	Rp37.000
12	09160-12112-000	WASHER (12X40X3.0)	2	Rp41.000	?09160-12065
13	54114-90J01-000	WASHER (12.5X22X3.0)	2	Rp31.500	?09160-12066
14	54151-90J00-000	MOUNT, LOWER THRUST	1	Rp71.500
15	54211-90J01-0EP	BRACKET, LOWER MOUNT (BLACK)	1	Rp1.396.000
16	54221-90J02-0EP	COVER, LOWER MOUNT (BLACK)	2	Rp927.000
17-1	09117-10034-000	BOLT (10X45)	6	-
17-2	09117-10058-000	BOLT (10X45)	6	Rp31.000	MODEL:05%
18	09160-12113-000	WASHER (12.5X30X2.5)	2	Rp23.500	?09160-12098
