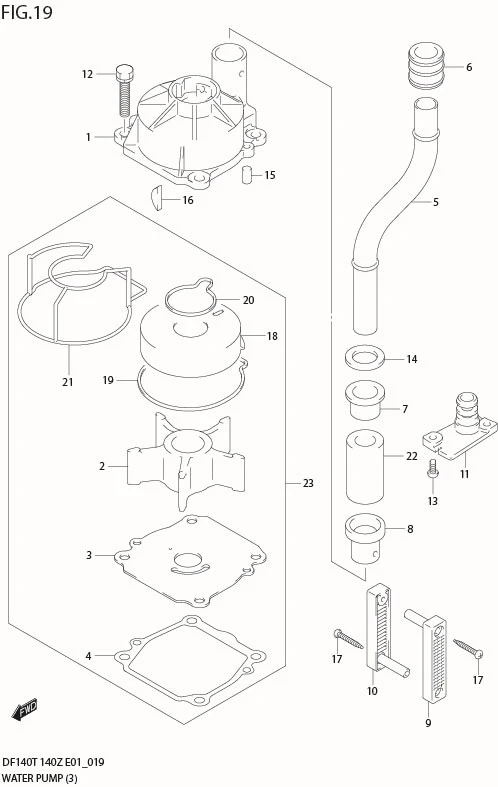

FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	17410-92J00-000	CASE, WATER PUMP	1	Rp666.000	DF140T:983646%
1-1	17410-92J00-000 SUB: 17411-92J00-000	CASE, WATER PUMP	1	Rp666.000	DF140T:%983645
2	17461-90J01-000	IMPELLER, WATER PUMP	1	Rp493.000
3-1	17471-92J00-000	PANEL, PUMP CASE UNDER	1	Rp122.500
3-2	17471-92J10-000	PANEL, PUMP CASE UNDER	1	Rp397.500	DF140WT/WZ
4	17472-87E10-000	GASKET, PUMP CASE PANEL	1	Rp53.000
5-1	17561-90J02-000	TUBE, WATER (L)	1	Rp173.500
5-2	17561-90J13-000 SUB: 17561-90J12-000	TUBE, WATER (X)	1	Rp400.000
6	17562-90J01-000 SUB: 17562-90J00-000	BUSH, WATER TUBE UPPER	1	Rp29.000
7	17563-87D01-000 SUB: 17563-87D00-000	BUSH, WATER TUBE LOWER	1	Rp75.000
8	17564-87D00-000	BUSH, WATER PUMP CASE	1	Rp104.000
9	17631-90J00-000	FILTER, WATER PORT SIDE	1	Rp84.500
10	17632-90J00-000	FILTER, WATER STBD SIDE	1	Rp84.500
11	17635-90J00-000	PLUG, SUB WATER TUBE	1	Rp40.500
12	09116-08131-000	BOLT (8X45)	4	Rp40.500
13	09125-05046-000	SCREW (5X12)	2	Rp14.000
14	09161-16008-000	WASHER (15.8X26X1.0)	1	Rp19.000
15	09202-06031-000	PIN, KNOCK	2	Rp21.500
16	09420-05009-000	KEY	1	Rp75.500
17	09132-04034-000	SCREW (4X18)	2	Rp15.000
18-1	17413-92J01-000	SLEEVE, WATER PUMP CASE	1	Rp298.000
18-2	17413-92J11-000	SLEEVE, WATER PUMP CASE	1	Rp1.035.000	DF140WT/WZ
19	17416-92J00-000	SEALING, WATER PUMP CASE NO.1	1	Rp53.000	DF140T:%983645
20	17417-92J00-000	SEALING, WATER PUMP CASE NO.2	1	Rp45.500	DF140T:%983645
21	17416-92J11-000 SUB: 17416-92J10-000	SEALING, WATER PUMP CASE	1	Rp112.000	DF140T:983646%
22	17612-90J01-000 SUB: 17612-90J00-000	SPACER, WATER TUBE (X)	1	Rp34.000
23-1	DISCONTINUE SUB: 17400-92J00-000	WATER PUMP REPAIR KIT	1	-	OPT
23-2	DISCONTINUE SUB: 17400-92J21-000	WATER PUMP REPAIR KIT	1	-	OPT
