DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

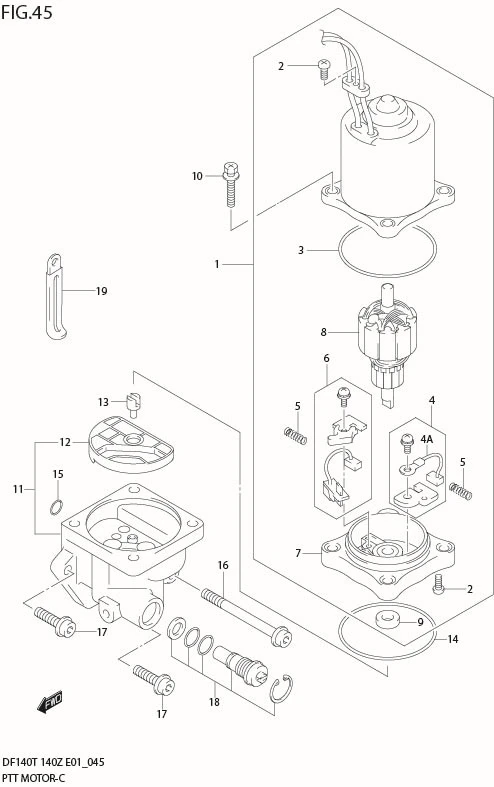

FIG 45 PTT MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	38100-92J03-000 SUB: 38100-92J02-000	MOTOR ASSY, PTT	1	Rp4.983.000	MODEL:03
1-3	38100-92J13-000 SUB: 38100-92J10-000	MOTOR ASSY, PTT	1	Rp8.597.000	MODEL:04%
1-1	38100-92J01-000	MOTOR ASSY, PTT	1	-
2	31111-94900-000	?SCREW, YOKE	2	Rp36.000
3	31123-94910-000 SUB: 31123-94900-000	?O RING	1	Rp111.500
4	31133-90J20-000 SUB: 31133-90J00-000	?BRUSH SET, PLUS	1	Rp123.000
4A	31133-94910-000 SUB: 31133-94900-000	??BRUSH	1	Rp132.000
5	31135-94900-000	?SPRING	2	Rp43.000
6	31136-90J30-000 SUB: 31136-90J10-000	?BREAKER	1	Rp629.500
7	31173-94920-000 SUB: 31173-94900-000	?HOLDER, BRUSH	1	Rp3.282.500
8	31311-94900-000	?ARMATURE	1	Rp4.535.500
9	33799-97E00-000	?OIL SEAL	1	Rp207.000
10	31281-92J10-000 SUB: 31281-92J00-000	BOLT	4	Rp86.500
11	48502-92J03-000	PUMP ASSY	1	-
12	48582-95E01-000	?FILTER	1	Rp304.000
13	48583-95E00-000	JOINT, DRIVE	1	Rp95.500
14	48585-95E00-000	O RING	1	Rp34.000
15	48588-94900-000	O RING SET	1	Rp53.000
16	48862-92J20-000 SUB: 48862-92J00-000	BOLT	1	Rp111.500
17	DISCONTINUE SUB: 48862-92J10-000	BOLT	2	-
18	48864-92J02-000 SUB: 48864-92J01-000	VALVE, MANUAL	1	Rp1.177.500
19	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
