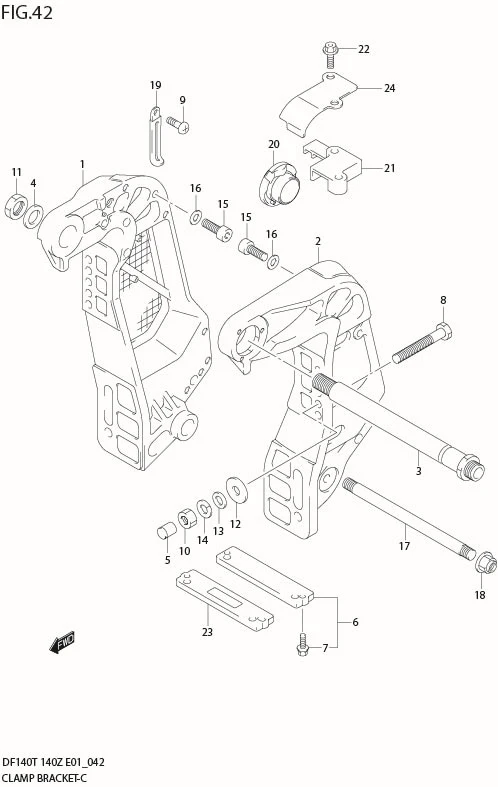

FIG 42 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	41111-92J03-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp2.608.000
2	41121-92J04-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp5.066.500
3-1	DISCONTINUE SUB: 41130-95541-000	SHAFT, CLAMP BRKT	1	-	?41130-95540
3-2	DISCONTINUE SUB: 41130-95542-000	SHAFT, CLAMP BRKT	1	-	MODEL:04,05
3-3	DISCONTINUE SUB: 41130-95543-000	SHAFT, CLAMP BRKT	1	-	DF140T:513458%
3-4	41130-92J03-000 SUB: 41130-92J01-000	SHAFT, CLAMP BRKT	1	Rp1.870.500	DF140T:682149%
4	41135-92J00-000	WASHER, CLAMP BRACKET SHAFT	1	Rp69.500
5	DISCONTINUE SUB: 41153-94500-000	CAP, TRANSOM BOLT	4	-
6	55320-94900-000	ZINC, PROTECTION	1	Rp421.000
7	09116-06121-000	?BOLT (6X25)	2	Rp18.000
8-1	09100-12083-000	BOLT (12X150,PITCH:1.75)	4	-	!09100-12090
8-2	DISCONTINUE SUB: 09100-12090-000	BOLT (12X150,PITCH:1.25)	4	-	DF140T:511173%
8-3	09100-12045-000	BOLT (12X115,PITCH:1.75)	1	-	OPT
8-4	09100-12091-000	BOLT (12X115,PITCH:1.25)	1	Rp161.000	OPT
9	09125-06063-000	SCREW (6X10)	1	Rp15.000
10-2	09159-12014-000	NUT (M12,PITCH:1.25)	4	Rp37.000	DF140T:511173%
10-1	DISCONTINUE SUB: 09140-12028-000	NUT (M12,PITCH:1.75)	4	-
11	09159-22006-000	NUT	1	Rp186.500
12	DISCONTINUE SUB: 09160-12044-000	WASHER (12.5X35X3.2)	4	-
13-1	09160-12066-000	WASHER (12.5X22X2.5)	4	Rp13.500
13-2	09160-12110-000	WASHER (12.5X22X3.0)	4	Rp55.000	DF140T:511173%
14	DISCONTINUE SUB: 09162-12005-000	WASHER, LOCK (12.2X21.5X3.0)	4	-	DF140T:%511172
15	DISCONTINUE SUB: 09106-10065-000	BOLT (10X20)	2	-
16	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2.0)	2	Rp12.000	?09160-10082
17	45421-87D03-000 SUB: 45421-87D01-000	PIN, TILT LOCK	1	Rp288.000
18	09159-14020-000	NUT	2	Rp31.000
19	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
20	48140-93J01-000 SUB: 48140-93J00-000	CAM, TILT LIMIT SWITCH	1	Rp143.500	MODEL:04%
21	DISCONTINUE SUB: 48144-93J00-000	HOLDER, TILT LIMIT SWITCH	1	-	MODEL:04%
22-1	09103-06093-000	BOLT (6X20)	2	Rp13.000	MODEL:04,05
22-2	09103-06278-000	BOLT (6X25)	2	Rp14.000	DF140T:514980%
23	55321-94910-000	ANODE (MAGNESIUM)	1	Rp483.000	OPT
24	DISCONTINUE SUB: 48145-93J00-000	COVER, TILT LIMIT SWITCH	1	-	DF140T:514980%
