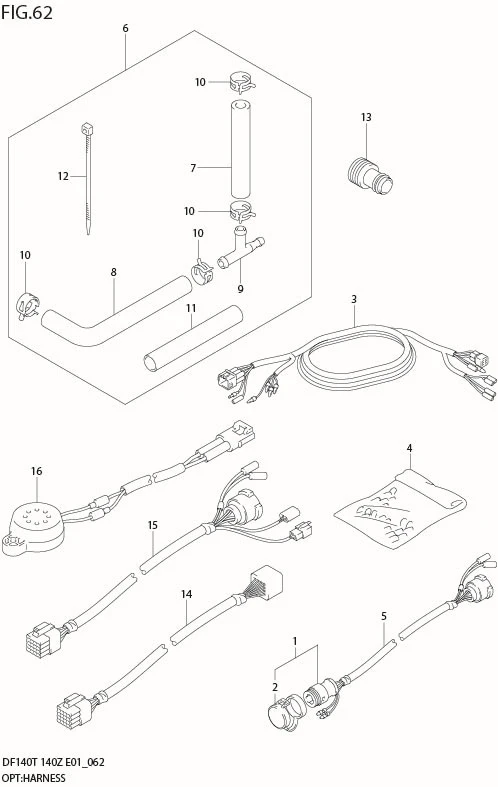

FIG 62 OPT:HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36620-95302-000	HARNESS ASSY, EXTENSION (S)	1	Rp1.027.000	L:2000 MODEL:02%04
1-1	36620-87D20-000	HARNESS ASSY, EXTENSION (L)	1	Rp1.420.500	L:5000 MODEL:02%04
2	36631-94300-000	?CAP	1	Rp32.000
3-1	36660-94400-000	WIRE, SENDER EXTENSION (L)	1	Rp915.500	L:6500 MODEL:02%04
3-2	36660-94480-000	WIRE, SENDER EXTENSION (S)	1	Rp610.000	L:2000 MODEL:02%04
4	36990-87D00-000	TERMINAL & SLEEVE SET	1	Rp126.500
5	36620-92E00-000	WIRE, REMOCON EXT	1	Rp2.329.500	MODEL:02%04
6	34660-90J04-000 SUB: 34660-90J02-000	WATER PRESS GAUGE SUB KIT	1	Rp108.000
7	09352-50006-600 SUB: 09352-50903-600	?HOSE	1	Rp46.000	L:600!160
8	09352-50006-600 SUB: 09352-50903-600	?HOSE	1	Rp46.000	L:600!210
9	09367-06006-000	?3 WAY	1	Rp23.500
10	09401-08413-000	?CLIP	4	Rp19.500
11	18498-99EA1-000 SUB: 18498-99EA0-000	?PROTECTOR (L:80)	1	Rp18.000	NOT FOR DF140
12	09407-19401-000 SUB: 09407-25402-000	?CLAMP	1	Rp31.500	NOT FOR DF140
13	17917-87L00-000	CONNECTOR, FLUSH WATER	1	Rp67.500
14-1	36620-93J12-000 SUB: 36620-93J10-000	WIRE ASSY, REMOCON EXTENSION	1	Rp1.057.500	L:2000 MODEL:05%
14-2	36620-93J42-000 SUB: 36620-93J40-000	WIRE ASSY, REMOCON EXTENSION	1	Rp1.324.500	L:3000 MODEL:05%
15-1	36620-93J20-000	WIRE ASSY, REMOCON ADAPTER	1	Rp1.190.000	L:2000 MODEL:04
15-2	36620-93J32-000 SUB: 36620-93J30-000	WIRE ASSY, REMOCON ADAPTER	1	Rp1.162.500	L:2000 MODEL:05%
16	38500-93J00-000	BUZZER ASSY, WARNING	1	Rp509.500	MODEL:05%
