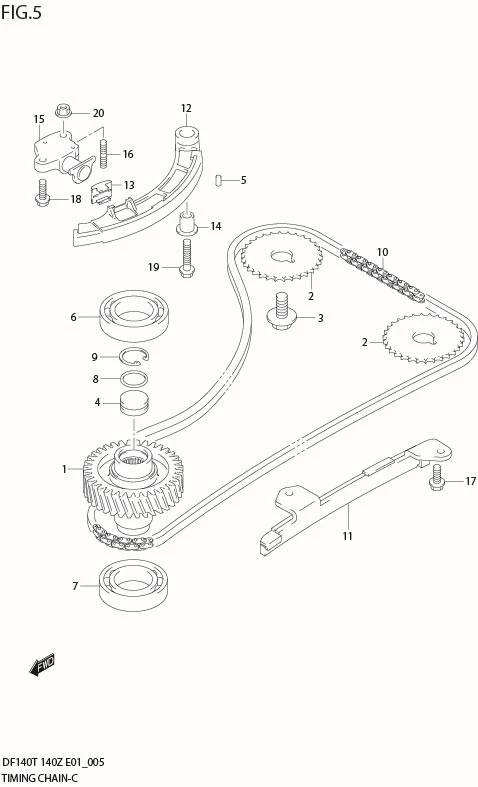

FIG 5 TIMING CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12732-90J01-000 SUB: 12732-90J00-000	GEAR, DRIVEN	1	Rp1.899.500
2	12741-90J01-000	SPROCKET, CAM SHAFT TIMING	2	Rp140.500
3	09103-12049-000	BOLT (12X25)	2	Rp32.500
4	12733-90J00-000	PLUG, DRIVEN GEAR	1	Rp53.000
5	04221-05109-000	PIN	2	Rp11.500
6	09262-35068-000	BEARING (35X62X14)	1	Rp437.000	UPPER
7	09262-35069-000	BEARING (35X62X16)	1	Rp814.000	LOWER
8	09280-22022-000	O RING (D:1.9 ID:21.8)	1	Rp38.000
9	08331-41269-000 SUB: 08331-4126A-000	CIRCLIP	1	Rp20.500
10	12761-90J00-000	CHAIN, TIMING	1	Rp689.500
11	12771-90J00-000	GUIDE, TIMING CHAIN	1	Rp411.000
12	12810-90J00-000	TENSIONER, TIMING CHAIN	1	Rp583.000
13	12813-73G00-000	?PAD, TIMING CHAIN TENSIONER	1	Rp33.000
14	12812-90J00-000	SPACER, TIMING CHAIN TENSIONER	1	Rp48.000
15-1	12831-90J02-000 SUB: 12831-90J00-000	ADJUSTER, TENSIONER	1	Rp1.018.500
15-2	12831-90J01-000	ADJUSTER, TENSIONER	1	-	DF140T:372389%
15-3	12831-90J02-000	ADJUSTER, TENSIONER	1	Rp1.018.500	DF140T:511545%
16	01421-0616A-000 SUB: 01421B0616AN000	BOLT, STUD	1	Rp3.500
17	01550-0616A-000 SUB: 01550B0616AN000	BOLT	2	Rp3.500
18	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
19	01550-0835A-000 SUB: 01550B0835AN000	BOLT	1	Rp3.500
20	08316-1006A-000 SUB: 08316B1006AN000	NUT	1	Rp2.000
