DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

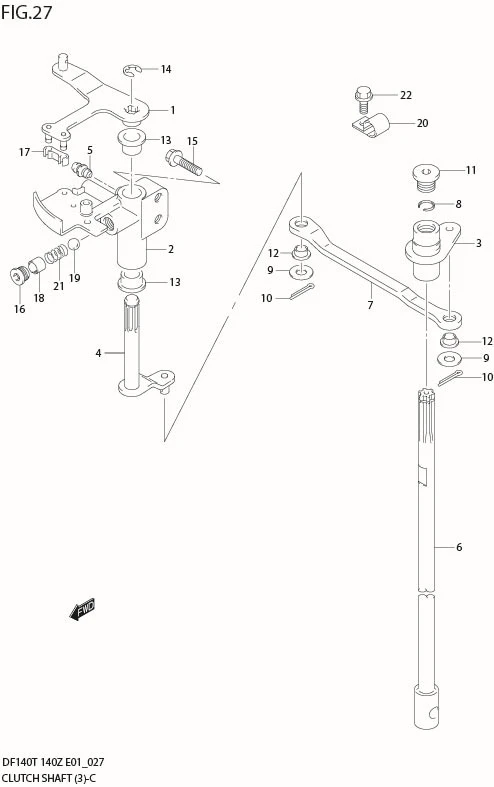

FIG 27 CLUTCH SHAFT (*)

FIG 27 CLUTCH SHAFT (*)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21110-92J00-000	LEVER, CLUTCH	1	Rp488.500
2	21151-92J00-000	HOLDER, CLUTCH LEVER	1	Rp407.000
3	21210-92J00-000	SHAFT, CLUTCH	1	Rp423.000
4	21230-92J00-000	ARM, CLUTCH SHAFT	1	Rp283.500
5	22511-99011-000	NIPPLE, GREASE	1	Rp39.500
6-1	23111-90J02-000	ROD, CLUTCH (L)	1	Rp551.500
6-2	23111-90J12-000	ROD, CLUTCH (X)	1	Rp632.500
7	23115-92J00-000	LINK, CLUTCH LEVER	1	Rp89.000
8	DISCONTINUE SUB: 23117-90J00-000	RING, CLUTCH ROD	1	-	DF140T:%683302
9	09160-06094-000	WASHER (6.5X15X1.5)	2	Rp11.000
10	09204-01006-000	PIN, CLUTCH LEVER LINK	2	Rp14.000
11	09248-12005-000	PLUG	1	Rp34.000
12	09306-06004-000	BUSH, CLUTCH LEVER LINK	2	Rp11.000
13	09306-10001-000	BUSH, CLUTCH LEVER	2	Rp24.000
14	09383-08004-000	E RING	1	Rp9.500
15	01550-06307-000	BOLT	2	Rp18.000
16	11118-95J00-000	PLUG, NOTCH SPRING	1	Rp47.500
17	21131-93J00-000	BUSH, CLUTCH LEVER	1	Rp13.000
18	09205-10006-000	PIN, CLUTCH NOTCH SPRING	1	Rp32.000
19	09260-10005-000	BALL, CLUTCH NOTCH	1	Rp15.500
20	09403-13413-000 SUB: 09403-13408-000	CLAMP, HOSE	1	Rp41.500
21	09440-07071-000	SPRING, CLUTCH NOTCH	1	Rp37.500
22	01550-06167-000	BOLT, HOSE CLAMP	1	Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
