  5. FIG 32 TRANSMISSION (DF140T/WT)

DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVERFIG 4 CRANKSHAFTFIG 5 TIMING CHAINFIG 6 CAMSHAFTFIG 7 INTAKE MANIFOLDFIG 8 SILENCERFIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTATFIG 21 THROTTLE BODYFIG 22 OIL PUMPFIG 23 OIL FILTERFIG 24 OIL PANFIG 25 CLUTCH SHAFTFIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTORFIG 35 MAGNETOFIG 36 RECTIFIERFIG 37 IGNITION COILFIG 38 SENSORFIG 39 HARNESSFIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKETFIG 43 SWIVEL BRACKETFIG 44 TRIM CYLINDERFIG 45 PTT MOTORFIG 46 ENGINE HOLDERFIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSINGFIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVERFIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINKFIG 59 OPT:METERFIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESSFIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

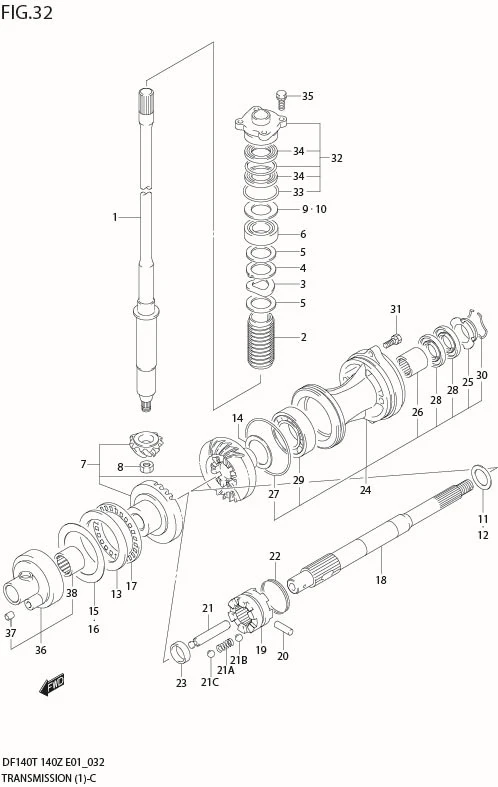

FIG 32 TRANSMISSION (DF140T/WT)

FIG 32 TRANSMISSION (DF140T/WT)
No No. Part Description Qty Price Per Pcs Remarks
1-2 57110-92J60-000
SUB: 57110-92J20-000		 SHAFT ASSY, DRIVE (L) 1 Rp4.259.500 MODEL:04%06
1-3 57110-92J60-000
SUB: 57110-92J41-000		 SHAFT ASSY, DRIVE (L) 1 Rp4.259.500 DF140T/WT:682149%
1-4 57110-90J30-000 SHAFT ASSY, DRIVE (X) 1 Rp6.179.000 ?57110-90J10
1-5 57110-92J30-000 SHAFT ASSY, DRIVE (X) 1 - MODEL:04%06
1-6 57110-92J70-000
SUB: 57110-92J51-000		 SHAFT ASSY, DRIVE (X) 1 Rp6.665.500 DF140T/WT:682149%
1-1 57110-90J20-000 SHAFT ASSY, DRIVE (L) 1 Rp4.954.500 ?57110-90J00
2 57133-90J02-000
SUB: 57133-90J01-000		 COLLAR, DRIVE SHAFT 1 Rp153.000
3 09164-31001-000 WAVE WASHER 1 Rp43.000 MODEL:02,03
4 09169-31001-000 WASHER 1 Rp39.500 MODEL:02,03
5 09181-31001-000 WASHER (31X42X2.0) 2 Rp40.000 MODEL:02,03
6 09265-25046-000
SUB: 09265-25040-000		 BEARING 1 Rp663.500
7-2 DISCONTINUE
SUB: 57300-92820-000		 PINION/GEAR SET 1 - DF140T/WT:682149%
7-3 57300-92862-000
SUB: 57300-92840-000		 PINION/GEAR SET 1 Rp7.833.500 MODEL:07%
7-1 57300-92801-000 PINION/GEAR SET 1 Rp8.331.500
8-1 DISCONTINUE
SUB: 09140-14021-000		 NUT 1 -
8-2 09140-14024-000 NUT 1 Rp23.000 MODEL:07%
9 57500-87873-000 SHIM SET, DRIVE SHAFT 1 Rp495.500
10-7 DISCONTINUE
SUB: 09181-40190-000		 ?SHIM (T:0.80) 1 -
10-14 09181-41014-000 ?SHIM (T:1.15) 1 Rp44.000
10-13 09181-41013-000 ?SHIM (T:1.10) 1 Rp44.000
10-12 09181-41012-000 ?SHIM (T:1.05) 1 Rp44.000
10-11 09181-40195-000 ?SHIM (T:1.00) 1 Rp35.000
10-10 09181-41010-000 ?SHIM (T:0.95) 1 Rp44.000
10-9 09181-41009-000 ?SHIM (T:0.90) 1 Rp44.000
10-8 09181-41008-000 ?SHIM (T:0.85) 1 Rp44.000
10-1 09181-40186-000 ?SHIM (T:0.50) 1 Rp32.000
10-2 DISCONTINUE
SUB: 09181-41002-000		 ?SHIM (T:0.55) 1 -
10-3 DISCONTINUE
SUB: 09181-41003-000		 ?SHIM (T:0.60) 1 -
10-4 09181-41004-000 ?SHIM (T:0.65) 1 Rp44.000
10-5 09181-41005-000 ?SHIM (T:0.70) 1 Rp44.000
10-6 09181-41006-000 ?SHIM (T:0.75) 1 Rp44.000
11 57500-87861-000 SHIM SET, PROP SHAFT REV 1 Rp340.000
12-1 08211-30382-000 ?WASHER (30X38X1.5) 1 Rp28.500
12-2 09160-30036-000 ?WASHER (30X38X1.7) 1 Rp28.000
12-3 09160-30037-000 ?WASHER (30X38X1.9) 1 Rp28.500
12-4 09160-30038-000 ?WASHER (30X38X2.1) 1 Rp28.500
12-5 09160-30039-000 ?WASHER (30X38X2.3) 1 Rp28.000
12-6 09160-30041-000 ?WASHER (30X38X2.4) 1 Rp33.500
12-7 09160-30042-000 ?WASHER (30X38X2.6) 1 Rp37.000
12-8 09160-30043-000 ?WASHER (30X38X2.7) 1 Rp33.500
12-9 09160-30044-000 ?WASHER (30X38X2.8) 1 Rp33.500
13 09160-70002-000 WASHER (70X95X5.25) 1 Rp429.500 FWD GEAR
14-5 DISCONTINUE
SUB: 09181-45007-000		 SHIM (45X56X1.4) 1 - REV GEAR
14-6 DISCONTINUE
SUB: 09181-45008-000		 SHIM (45X56X1.5) 1 - REV GEAR
14-7 DISCONTINUE
SUB: 09181-45009-000		 SHIM (45X56X1.6) 1 - REV GEAR
14-3 09181-45005-000 SHIM (45X56X1.2) 1 Rp34.000 REV GEAR
14-2 09181-45004-000 SHIM (45X56X1.1) 1 Rp34.000 REV GEAR
14-4 DISCONTINUE
SUB: 09181-45006-000		 SHIM (45X56X1.3) 1 - REV GEAR
14-1 DISCONTINUE
SUB: 09181-45003-000		 SHIM (45X56X1.0) 1 - REV GEAR
15 57500-92813-000 SHIM SET, FWD GEAR 1 Rp805.500 FWD GEAR
16-9 09181-70012-000 ?SHIM (70X95X0.95) 1 Rp125.000 FWD GEAR
16-8 09181-70011-000 ?SHIM (70X95X0.85) 1 Rp78.000 FWD GEAR
16-7 DISCONTINUE
SUB: 09181-70010-000		 ?SHIM (70X95X0.75) 1 - FWD GEAR
16-6 DISCONTINUE
SUB: 09181-70009-000		 ?SHIM (70X95X0.65) 1 - FWD GEAR
16-5 DISCONTINUE
SUB: 09181-70006-000		 ?SHIM (70X95X0.6) 1 - FWD GEAR
16-4 DISCONTINUE
SUB: 09181-70004-000		 ?SHIM (70X95X1.0) 1 - FWD GEAR
16-3 DISCONTINUE
SUB: 09181-70003-000		 ?SHIM (70X95X0.9) 1 - FWD GEAR
16-2 DISCONTINUE
SUB: 09181-70002-000		 ?SHIM (70X95X0.8) 1 - FWD GEAR
16-1 DISCONTINUE
SUB: 09181-70001-000		 ?SHIM (70X95X0.7) 1 - FWD GEAR
17 09269-70001-000 BEARING 1 Rp535.500
18-1 57610-92J00-000 SHAFT ASSY, PROPELLER 1 Rp4.416.500
18-2 57610-92J20-000 SHAFT ASSY, PROPELLER 1 Rp4.093.500 DF140T/WT:682149%
19-1 DISCONTINUE
SUB: 57621-92J00-000		 SHIFTER, CLUTCH DOG 1 -
19-2 57621-92J20-000
SUB: 57621-92J10-000		 SHIFTER, CLUTCH DOG 1 Rp1.162.000 DF140T/WT:682149%
20 09202-07002-000 PIN 1 Rp35.000
21C 06111-11004-000 BALL, DENTENT NO.2 2 Rp12.500 DF140T/WT:682149%
21B 06111M07004-000
SUB: 06111-07004-000		 BALL, DENTENT NO.1 2 Rp3.000 DF140T/WT:682149%
21A 09440-09040-000 SPRING, DETENT 1 Rp26.500 DF140T/WT:682149%
21-1 DISCONTINUE
SUB: 57631-87E00-000		 ROD, PUSH 1 -
21-2 57631-92J10-000
SUB: 57631-92J00-000		 ROD, PUSH 1 Rp365.500 DF140T/WT:682149%
22-1 09440-50002-000 SPRING 1 Rp14.500
22-2 09440-49004-000 SPRING 1 Rp21.500 MODEL:03%
23 57616-90J00-000 SPACER, CLUTCH DOG FWD 1 Rp214.000
24 56120-92J01-0EP HOUSING, PROP SFT BRG (BLACK) 1 Rp4.860.000
25 56123-92J00-000 ?WASHER, OIL SEAL PROTECTOR 1 Rp54.500
26 09263-30051-000 ?BEARING 1 Rp269.500
27 09280-97001-000 ?O RING (D:3.5,ID:95) 1 Rp28.000
28 09282-30007-000 ?OIL SEAL 2 Rp63.000
29 08113-62090-000 ?BEARING 1 Rp434.500
30 DISCONTINUE
SUB: 09387-52001-000		 ?RING 1 -
31 09117-08047-000 BOLT (8X30) 2 Rp44.500
32 56130-90J00-000 HOUSING 1 Rp657.500
33 09280-46004-000 ?O RING (D:3.5,ID:45.7) 1 Rp21.000
34 09282-24004-000 ?OIL SEAL 2 Rp43.000
35 09117-08110-000
SUB: 09117-08057-000		 BOLT (8X25) 4 Rp33.000
36 56140-92J00-000 HOUSING, FWD GEAR BRG 1 Rp1.294.500
37-1 09206-09012-000 ?PIN, KNOCK 2 Rp22.000
37-2 09206-09012-000 ?PIN, KNOCK 1 Rp22.000 DF140T/WT:421378%
38 09263-50001-000 ?BEARING 1 Rp466.000
