DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

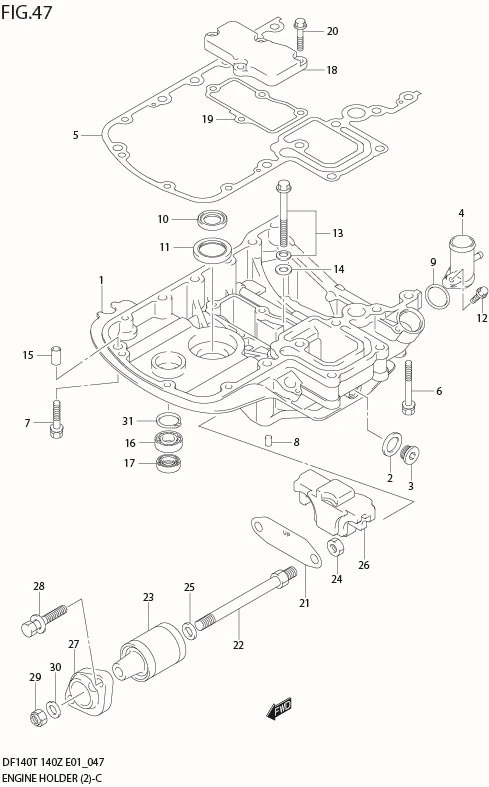

FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	51110-90843-0EP SUB: 51110-90841-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp13.593.000	MODEL:07
1-1	51110-90843-0EP SUB: 51110-90840-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp13.593.000	INC.NO.2,3,10,11,16,17,31
1-3	51110-90843-0EP SUB: 51110-90842-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp13.593.000	MODEL:08%
2	09160-18031-000	?GASKET (18.5X28X2.6)	1	Rp19.500	%MODEL:07
3	09248-18010-000	?PLUG	1	Rp50.500	%MODEL:07
4	51115-90J00-000	UNION, WATER RETURN	1	Rp125.000
5	51211-90J22-000 SUB: 51211-90J21-000	GASKET, ENGINE HOLDER	1	Rp657.000
6	09116-08119-000	BOLT (8X70)	4	Rp21.500
7	09116-08128-000	BOLT (8X40)	4	Rp124.500
8	09206-08001-000 SUB: 09206B08001N000	PIN	2	Rp5.500
9	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
10	09282-24003-000	SEAL, OIL	2	Rp53.500
11	09283-32044-000	SEAL, OIL	1	Rp121.500
12	01550-06257-000 SUB: 01550B06257N000	BOLT	1	Rp3.500
13	29117-93J10-000	BOLT (W/WASHER) (8X45)	1	Rp36.000	?09117-08038
14	09160-08059-000	WASHER (8.5X18X1.6)	1	Rp10.500
15	04211-11129-000 SUB: 04211B11129N000	PIN	3	Rp2.000
16	09262-17019-000	BEARING, CLUTCH SHAFT	1	Rp163.500
17	09289-18001-000	SEAL, CLUTCH SHAFT	1	Rp149.000
18	51122-90J00-000	COVER, MOUNT CASE	1	Rp473.000
19	51123-90J01-000	GASKET, MOUNT CASE COVER	1	Rp86.000
20	01550-0825A-000 SUB: 01550B0825AN000	BOLT	4	Rp3.500
21	54123-90J01-000 SUB: 54123-90J00-000	PLATE, UPPER MOUNT	1	Rp172.000
22	54112-90J21-000	BOLT, UPPER MOUNT	2	Rp484.500
23	54130-90J40-000	MOUNT, UPPER	2	Rp442.000
24	09159-12014-000	NUT	2	Rp37.000
25	54114-90J01-000	WASHER (12.5X22X3)	2	Rp31.500
26	54125-90J11-000 SUB: 54125-90J10-000	MOUNT, UPPER THRUST	1	Rp184.000
27	54148-90J11-0EP	COVER, UPPER MOUNT (BLACK)	2	Rp430.000
28	09116-10176-000 SUB: 09116-10139-000	BOLT (W/WASHER)(10X44)	4	Rp100.000
29	09159-12014-000	NUT	2	Rp37.000
30	09160-12110-000	WASHER (12.5X22X3)	2	Rp55.000
31	08331-41359-000	CIRCLIP	1	Rp18.500
