< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

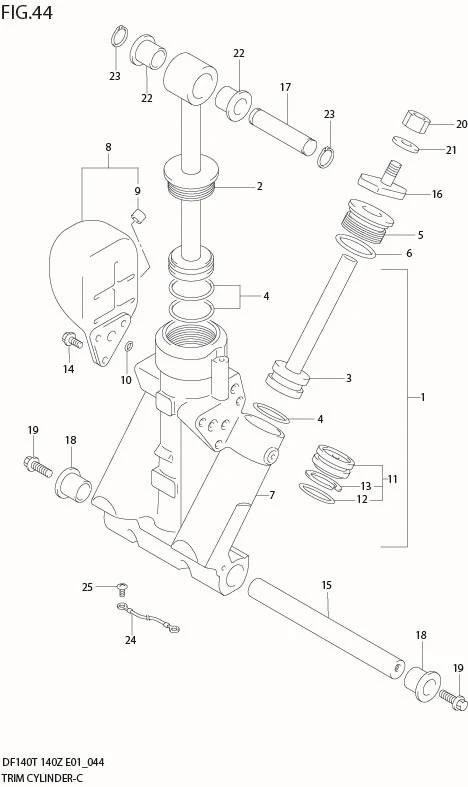

FIG 44 TRIM CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 48503-92J01-000	MANIFOLD SUB ASSY	1	-
2-1	48401-92J00-000	?PISTON ASSY	1	Rp3.969.000
2-2	48401-92J01-000	?PISTON ASSY	1	Rp2.263.500	DF140T:883609%
3	48601-94900-000	?PISTON / RAM ASSY	2	Rp2.007.000
4	48627-95E00-000	?O RING SET	3	Rp65.500
5-1	48630-92J00-000	?HEAD, TRIM CYLINDER	2	Rp656.500
5-2	48630-96J04-000 SUB: 48630-96J01-000	?HEAD, TRIM CYLINDER	2	Rp1.027.500	DF140T:883609%
6	48633-94900-000	?O RING	2	Rp58.500
7-1	48641-92J00-000	?MANIFOLD, PTT	1	Rp12.184.000
7-2	48641-96J01-000	?MANIFOLD, PTT	1	Rp5.808.500	DF140T:883609%
8	DISCONTINUE SUB: 48570-95E00-000	?RESERVOIR	1	-
9	48572-95E00-000	??CAP	1	Rp196.000
10	48588-94900-000	?O RING	3	Rp53.000
11	48650-94900-000	?PISTON, FREE	2	Rp607.500
12	48405-87D00-000	??O RING	2	Rp65.500
13	48615-97E00-000	??RING SET, PISTON	2	Rp81.000
14	48861-92J00-000	?BOLT, RESERVOIR	3	Rp52.500
15	48121-92J00-000	SHAFT, TILT CYL LOWER	1	Rp661.000
16	DISCONTINUE SUB: 48311-94501-000	PAD, TRIM CYL RAM	2	-
17	48321-87D03-000	SHAFT, TILT CYL UPPER	1	Rp180.000
18	48326-95E00-000	BUSH, TILT CYL LOWER	2	Rp53.500
19	09116-10131-000	BOLT (10X35)	2	Rp49.000
20	09140-08023-XC0	NUT	2	Rp22.500	?09140-08016
21	29162-93J10-000	LOCK WASHER (8.2X15.4X2.0)	2	Rp16.000	?09162-08007
22	09306-17001-000	BUSH	2	Rp26.500
23	09380-17009-000	CIRCLIP	2	Rp18.000	UPPER
24	36894-87D00-000	LEAD	1	Rp98.500
25	09125-06063-000	SCREW (6X10)	1	Rp15.000
