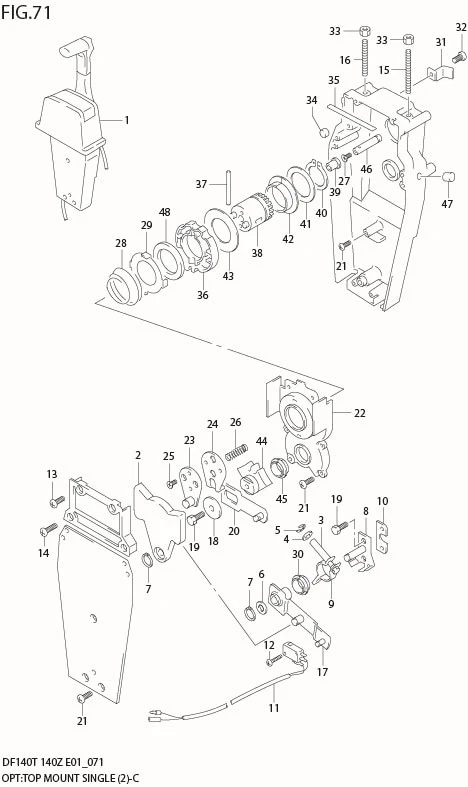

FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-88L02-000 SUB: 67200-93J12-000	REMOTE CONTROL ASSY	1	Rp5.021.000	PUSH
2	67222-92E00-000	?DUAL PLATE	1	Rp180.000
3	67223-92E00-000	?BRAKE ADJUST	1	Rp60.500
4	67288-92E00-000	?WASHER	1	Rp24.500
5	67292-94300-000	?E RING	4	Rp11.000
6	67288-92E10-000	?WASHER	1	Rp25.000
7	67291-92E00-000	?SNAP RING	2	Rp30.500
8	67221-92E00-000	?SHIFT ASSY	1	Rp175.500
9	67224-92E00-000	?BRAKE ARM ASSY	1	Rp121.500
10	67294-92E00-000	?SPACER	1	Rp96.000
11	37721-95500-000	?SWITCH ASSY, N/R	1	Rp318.000
12	67296-92E10-000	?SCREW (3X15)	2	Rp17.000
13	67296-88D10-000	?SCREW (5X16)	2	Rp30.000
14	67296-92E20-000	?SCREW (5X25)	2	Rp25.000
15	67226-92E00-000	?BOLT, STOPPER FRONT	1	Rp65.000
16	67226-92E10-000	?BOLT, STOPPER REAR	1	Rp65.000
17	67240-92E00-000	?ARM ASSY, THROTTLE	1	Rp307.500
18	67228-92E00-000	?WASHER	1	Rp42.000
19	67286-92E00-000	?BOLT (6X18)	3	Rp25.000
20	67230-92E00-000	?ARM ASSY, SHIFT	1	Rp81.000
21	DISCONTINUE SUB: 09125-05042-000	?SCREW (5X10)	9	-
22	67234-92E00-000	?CASE, GEAR	1	Rp236.500
23	67245-92E00-000	?LEVER ASSY, THROTTLE	1	Rp180.000
24	67227-92E00-000	?STOPPER	1	Rp96.000
25	09126-06006-000	?SCREW (6X20)	2	Rp12.500
26	67225-92E00-000	?SPRING	1	Rp25.000
27	09125-04004-000	?SCREW (4X6)	1	Rp9.500
28	67233-92E00-000	?SPRING	1	Rp103.000
29	67235-92E00-000	?PLATE, SHIFT LOCK	1	Rp60.500
30	67232-95620-000	?BUSH	1	Rp47.000
31	67269-92E01-000 SUB: 67269-92E00-000	?BRACKET	1	Rp49.000
32	67296-88D10-000	?SCREW	1	Rp30.000
33	09140-06020-000	?NUT	2	Rp13.500
34	67236-92E00-000	?ROLLER	1	Rp32.500
35	67237-92E01-000	?SPRING	6	Rp36.500
36	67238-92E00-000	?GEAR, DRIVE	1	Rp286.500
37	67239-92E00-000	?PIN	1	Rp104.500
38	67246-92E00-000	?SHIFT, DRIVE	1	Rp394.500
39	67252-92E00-000	?BUSH	1	Rp43.500
40	67291-92E10-000	?SNAP RING	1	Rp86.500
41	67253-92E10-000	?WASHER	1	Rp30.500
42	67252-92E10-000	?BUSH	1	Rp34.000
43	67253-95600-000	?WASHER	1	Rp37.500
44	67231-92E00-000	?GEAR, SHIFT	1	Rp127.000
45	67232-95600-000	?BUSH	1	Rp44.000
46	67241-92E00-000	?ROD, FREE ACC	1	Rp63.000
47	67243-92E00-000	?GROMMET	1	Rp47.500
48	67239-92E10-000	?PLATE, SHIFT PIN	1	Rp70.000
