DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

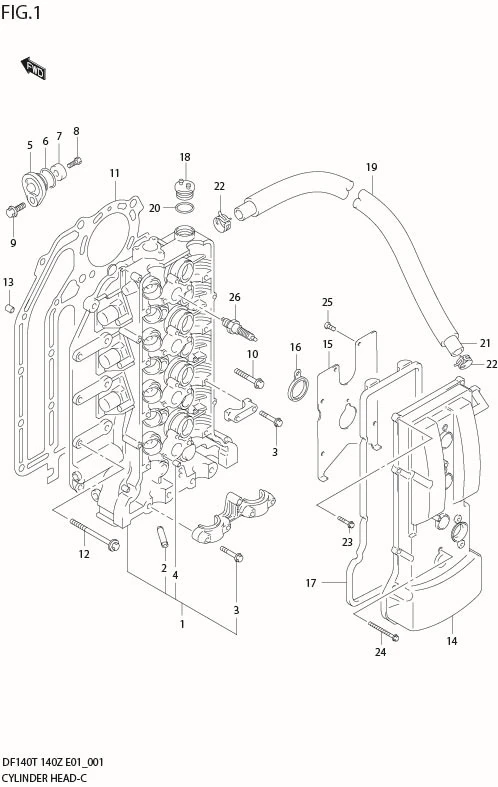

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11100-90J11-000 SUB: 11100-90J02-000	HEAD, CYLINDER	1	Rp24.266.500	INC.NO.5%9
1-3	11100-90J05-000	HEAD, CYLINDER	1	-	DF140T:422364%
1-4	11100-90J11-000 SUB: 11100-90J06-000	HEAD, CYLINDER	1	Rp24.266.500	DF140T:110122%
1-1	11100-90J01-000	HEAD, CYLINDER	1	-
2	11115-85FA1-001	?GUIDE, VALVE	16	Rp173.000
3	02112-0612A-000 SUB: 02112B0612AN000	SCREW	1	Rp3.500
3-2	09103-06266-000	?BOLT, CAMSHAFT HOUSING	21	Rp14.000	DF140T:110122%
3-1	11128-90J00-000	?BOLT, CAM SHAFT HOUSING	21	Rp24.000
4	09206-08001-000 SUB: 09206B08001N000	?PIN	18	Rp5.500
5	11261-93J00-000	COVER, PROTECTION ANODE	2	Rp132.500	DF140T:421160%
6	09280-22019-000	O RING	2	Rp15.500	DF140T:421160%
7	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	2	Rp79.500	DF140T:421160%
8-1	DISCONTINUE SUB: 09128-06021-000	BOLT, PROTECTION ANODE	2	-	DF140T:421160%
8-2	09103-06281-000	BOLT, PROTECTION ANODE	2	Rp20.500	MODEL:06%
9	01550-08207-000	BOLT	2	Rp19.000	DF140T:421160%
10	11117-89J00-000	BOLT, CYL HEAD	10	Rp47.000
11	11141-92J01-000	GASKET, CYL HEAD	1	Rp771.000
12	09116-08125-000	BOLT (8X52)	8	Rp26.000
13	04211M13189-000 SUB: 04211-13189-000	PIN	2	Rp9.000
14	11170-90J01-000 SUB: 11170-90J00-000	COVER, CYL HEAD	1	Rp2.164.000
15	11173-90J00-000	PLATE, BREATHER	1	Rp71.500
16	11179-90J00-000	GASKET, SPARK PLUG HOLE	4	Rp45.500
17	11189-90J00-000	GASKET, CYL HEAD COVER	1	Rp247.500
18	11382-99E00-000	CAP, OIL FILLER	1	Rp79.000
19	DISCONTINUE SUB: 18498-90J20-000	PROTECTOR, BREATHER HOSE	1	-	L:590
20	09280-26006-000	O RING (D:3.1 ID:26.4)	1	Rp16.500
21	09355-13207-00B	HOSE, BREATHER	1	Rp385.500	L:2000!660
22	09401-20409-000	CLIP	2	Rp27.000
23	01547-06257-000	BOLT	11	Rp14.000
24	DISCONTINUE SUB: 01547-06557-000	BOLT	4	-
26	09482-00427-000	SPARK PLUG (BKR6E)	4	Rp55.000
