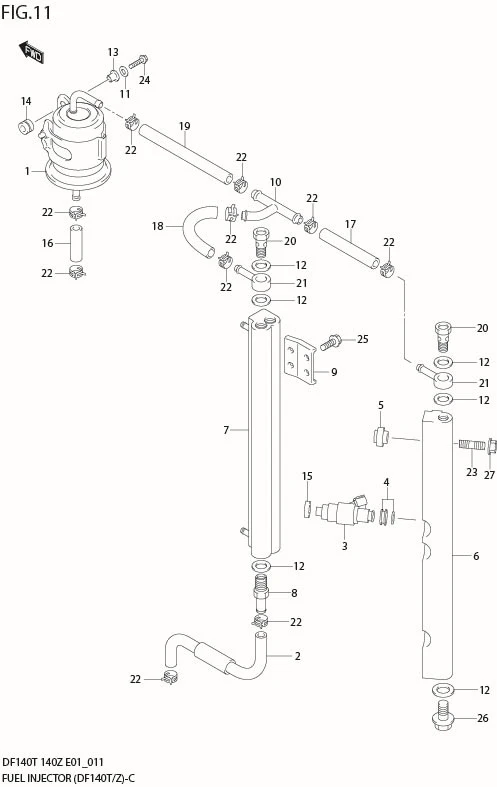

FIG 11 FUEL INJECTOR (DF140T/Z)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15440-90J00-000	FILTER, FUEL	1	Rp769.000
2	15680-90J01-000	HOSE, FUEL	1	Rp316.500
3	15710-65D00-000	INJECTOR, FUEL	4	Rp3.427.000
4	15716-65DT0-000	?GROMMET SET	4	Rp157.000
5	15735-58B00-000	INSULATOR, DELIVERY PIPE	2	Rp45.500
6	15751-90J03-000	PIPE, DELIVERY	1	Rp1.428.500
7	15770-90J02-000	COOLER, FUEL	1	Rp990.500
8	15773-90J10-000 SUB: 15773-90J00-000	UNION, FUEL HOSE	1	Rp190.000
9	15775-90J00-000	BRACKET, FUEL COOLER	2	Rp29.500
10	15830-99E00-000	UNION, 3 WAY FUEL HOSE	1	Rp129.500
11	09160-06006-000 SUB: 09160-06084-000	WASHER (6.5X18X1.6)	2	Rp11.000	MODEL:02%05
12	09168-12013-000	GASKET	6	Rp22.500
13	09169-06062-000	WASHER	2	Rp16.500
14	09320-08501-000	CUSHION	2	Rp21.500
15	09320-09022-000 SUB: 09320-08062-000	CUSHION	4	Rp8.500
16-2	09343-75002-600 SUB: 09343-75001-600	HOSE (SEPARATOR TO FILTER)	1	Rp341.500	DF140T:110001%
16-1	09356-75137-600	HOSE (SEPARATOR TO FILTER)	1	Rp1.190.000	L:600!50
17-1	09356-75137-600	HOSE (3 WAY TO DLVY PIPE)	1	Rp1.190.000	L:600!50
17-2	09343-75002-600 SUB: 09343-75001-600	HOSE (3 WAY TO DLVY PIPE)	1	Rp341.500	DF140T:110001%
18-1	09356-75137-600	HOSE (3 WAY TO COOLER)	1	Rp1.190.000	L:600!50
18-2	09343-75002-600 SUB: 09343-75001-600	HOSE (3 WAY TO COOLER)	1	Rp341.500	DF140T:110001%
19-1	09356-75137-600	HOSE (FILTER TO 3 WAY)	1	Rp1.190.000	L:600!110
19-2	09343-75002-600 SUB: 09343-75001-600	HOSE (FILTER TO 3 WAY)	1	Rp341.500	DF140T:110001%
20	09360-12008-000	UNION	2	Rp70.500
21	09363-08004-000	UNION	2	Rp135.500
22	09401-11425-000	CLIP	10	Rp35.500
23	01421-08357-000	STUD BOLT	2	Rp27.000
24-1	DISCONTINUE SUB: 01500-06257-000	BOLT	2	-
24-2	DISCONTINUE SUB: 09116-06202-000	BOLT (W/WASHER)	2	-	MODEL:06%
25	01550-06167-000	BOLT	6	Rp16.500
26	01550-12167-000	BOLT	1	Rp24.000
27	08316-10087-000	NUT	2	Rp17.000
