DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

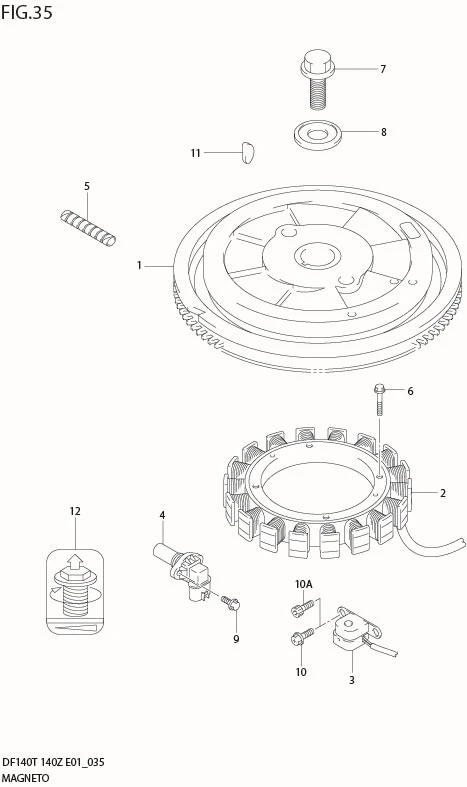

FIG 35 MAGNETO

FIG 35 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	32102-92J10-000	FLYWHEEL	1	Rp12.152.500	MODEL:03%
1-1	32102-92J00-000	FLYWHEEL	1	-
2-1	DISCONTINUE SUB: 32120-90J00-000	COIL, BATTERY CHARGING	1	-
2-2	DISCONTINUE SUB: 32120-90J10-000	COIL, BATTERY CHARGING	1	-	MODEL:03%05
2-3	32120-90J21-000 SUB: 32120-90J20-000	COIL, BATTERY CHARGING	1	Rp7.487.000	MODEL:06%
3-1	32160-87J00-000	COIL, IGNITION TIMING	1	Rp712.000
3-2	32160-87L01-000 SUB: 32160-87J10-000	COIL, IGNITION TIMING	1	Rp998.000	MODEL:03%09
3-3	32160-87L01-000 SUB: 32160-87L00-000	COIL, IGNITION TIMING	1	Rp998.000	MODEL:10%
4	33220-76G02-000	SENSOR, CAM POSITION	1	Rp1.004.000
5	33833-91J00-000	TUBE	1	Rp47.500	L:250!100
6	09103-06231-000	BOLT (6X35)	4	Rp17.500
7	09103-16004-000 SUB: 09103-16003-000	BOLT (16X50)	1	Rp81.000
8	09160-16048-000	WASHER (16.5X60.5X7.0)	1	Rp95.000
9	01547-0616A-000 SUB: 01547-06167-000	BOLT	1	Rp6.500
10	02162-05167-000	SCREW	2	Rp12.500	DF140T:%983167
10A	09106-05030-000	BOLT	2	Rp16.000	DF140T:983168%
11	08341M31059-000	KEY, WOODRUFF	1	Rp4.500
12	32118-90J00-000	LABEL, MAG BOLT	1	Rp31.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
