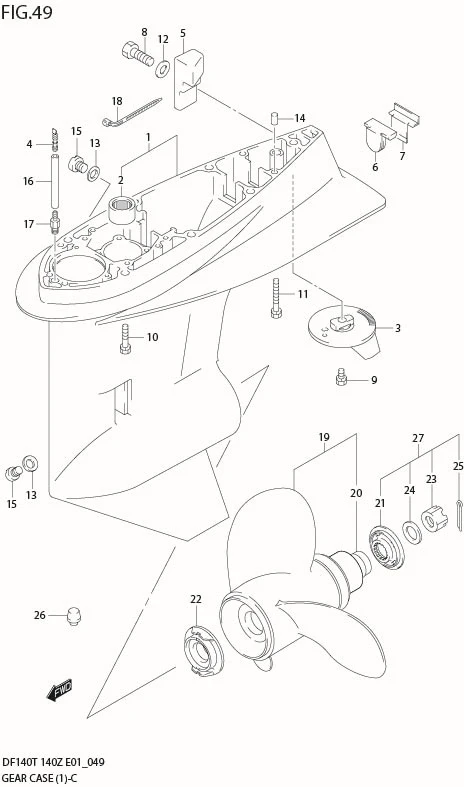

FIG 49 GEAR CASE (DF140T/WT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	55110-90J15-0EP	CASE, GEAR (BLACK)	1	Rp8.912.500
2	09263-28016-000	?BEARING, PINION	1	Rp695.000
3	55125-90J01-000	TAB, TRIM	1	Rp195.500
4	DISCONTINUE SUB: 55127-87D00-000	UNION, SPEEDOMETER HOSE	1	-
5	55321-90J01-000	ANODE, GEAR CASE	1	Rp115.000
6	55332-87D12-000 SUB: 55332-87D11-000	RUBBER, EXHAUST SEAL	1	Rp92.000
7	55333-87D10-000	PLATE, EXHAUST SEAL	1	Rp119.500
8	09100-06131-000	BOLT (6X12)	1	Rp13.000
9	09116-08137-000	BOLT, TRIM TAB (8X22)	1	Rp49.000	?09116-08103
10-1	09116-10150-000 SUB: 09117-10038-000	BOLT (10X55)	6	Rp128.000
10-2	09116-10150-000	BOLT (10X55)	6	Rp128.000	MODEL:04%
11	DISCONTINUE SUB: 09117-10039-000	BOLT (10X80)	1	-
12	09160-06085-000	WASHER (6.5X15X1.0)	1	Rp9.500
13	09168-10022-000	GASKET, DRAIN PLUG	2	Rp10.500
14	09202-08006-000	PIN	2	Rp27.000
15	09248-10008-000	PLUG, DRAIN	2	Rp42.500
16-1	DISCONTINUE SUB: 09355-40805-00B	HOSE	1	-	TYPE:L
16-2	DISCONTINUE SUB: 09355-40805-00B	HOSE	1	-	TYPE:X
17	09362-09008-000	NIPPLE	1	Rp26.500
18	09407-14407-000	CLAMP	3	Rp18.500
19-2	58100-90JB0-019 SUB: 58100-90J11-019	PROPELLER (3X14X19)	1	Rp4.518.000
19-3	DISCONTINUE SUB: 58100-90J21-019	PROPELLER (3X14X21)	1	-
19-4	58100-90J31-019	PROPELLER (3X14X23)	1	Rp1.908.000
19-5	58100-90JE0-019 SUB: 58100-90J41-019	PROPELLER (3X13.5X15)	1	Rp6.067.000
19-6	DISCONTINUE SUB: 58200-90J00-000	PROPELLER (3X14.25X18)	1	-	OPT SUS
19-7	DISCONTINUE SUB: 58200-90J10-000	PROPELLER (3X14.25X20)	1	-	OPT SUS
19-8	DISCONTINUE SUB: 58200-90J20-000	PROPELLER (3X14.25X22)	1	-	OPT SUS
19-9	DISCONTINUE SUB: 58200-90J30-000	PROPELLER (3X14.25X24)	1	-	OPT SUS
19-1	58100-90JA0-019 SUB: 58100-90J01-019	PROPELLER (3X14X17)	1	Rp4.518.000
20	58120-90J00-000	?BUSH	1	Rp560.500
21	DISCONTINUE SUB: 57633-90J02-000	SPACER, PROPELLER NUT	1	-
22	57635-92J01-000	STOPPER, PROPELLER BUSH	1	Rp686.500	?57635-92J00
23	09141-18005-000	NUT	1	Rp71.000
24	09160-18028-000	WASHER	1	Rp25.500
25	09204-03003-000	PIN	1	Rp17.500
26	55116-87E00-000	PLUG	1	Rp629.500	OPT
27	57630-90J00-000	KIT, PROPELLER NUT	1	Rp566.000	OPT
28	25700-92J00-000	SEALING KIT, GEAR CASE	1	Rp404.000	OPT NOT SHOWN
