DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

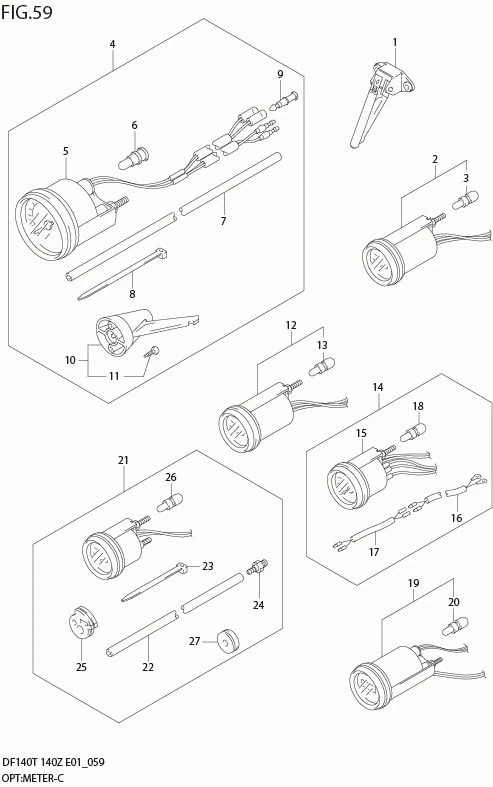

FIG 59 OPT:METER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 34190-87D00-000	SENDER ASSY, SPEEDOMETER	1	-
2	DISCONTINUE SUB: 34800-90J02-000	METER ASSY, TRIM	1	-	?34800-90J00
3	09471-12180-000	?BULB	1	Rp25.000
4-1	DISCONTINUE SUB: 34102-92E00-000	SPEEDOMETER SET	1	-	MAX 130KM/H
4-2	DISCONTINUE SUB: 34102-92E10-000	SPEEDOMETER SET	1	-	MAX 80KM/H
4-3	34102-92E20-000	SPEEDOMETER SET	1	Rp2.078.500	MAX 45KNOTS
5-1	DISCONTINUE SUB: 34100-92E00-000	?SPEEDOMETER	1	-	MAX 130KM/H
5-2	34100-92E10-000	?SPEEDOMETER	1	Rp1.466.500	MAX 80KM/H
5-3	34100-92E20-000	?SPEEDOMETER	1	Rp1.480.500	MAX 45KNOTS
6	09471-12179-000	?BULB	1	Rp25.500
7	34191-92E00-000	?TUBE	1	Rp244.500
8	09407-14407-000	?BAND	2	Rp18.500
9	36615-96300-000	?TERMINAL, RESIN	2	Rp11.000
10	DISCONTINUE SUB: 34190-95500-000	?SENDER ASSY, SPEEDOMETER	1	-
11	03112-06303-000	?SCREW	2	Rp11.500
12	DISCONTINUE SUB: 34600-92E00-000	METER, VOLTAGE	1	-
13	09471-12180-000	?BULB	1	Rp25.000
14	34300-92E01-000	GAUGE ASSY, FUEL	1	Rp1.355.500
15	34320-92E01-000	?GAUGE, FUEL	1	Rp1.062.000
16	34310-92E00-000	?LEAD, FUEL GAUGE	1	Rp702.000
17	34360-92E00-000	?ADAPTER, FUEL GAUGE	1	Rp288.000
18	09471-12180-000	?BULB	1	Rp25.000
19	DISCONTINUE SUB: 34500-92E00-000	METER ASSY, HOUR	1	-
20	09471-12180-000	?BULB	1	Rp25.000
21	DISCONTINUE SUB: 34650-92E00-000	GAUGE ASSY, WATER PRESSURE	1	-	30PSI
22	34191-92E00-000	?TUBE	1	Rp244.500
23	09407-14407-000	?BAND	1	Rp18.500
24	34652-92E00-000	?UNION	1	Rp126.000
25	36658-95600-000	?GROMMET	1	Rp52.500
26	09471-12180-000	?BULB	1	Rp25.000
27	09320-08028-000 SUB: 09320B08028N000	?GROMMET	1	Rp11.500
