DF140T 140Z E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF140T/Z)FIG 10 FUEL VAPOR SEPARATOR (DF140WT/WZ)FIG 11 FUEL INJECTOR (DF140T/Z)FIG 12 FUEL INJECTOR (DF140WT/WZ)FIG 13 FUEL PUMP (DF140T/Z)FIG 14 FUEL PUMP (DF140T:682149%,DF140Z:680234%)FIG 15 FUEL PUMP (DF140WT/WZ)FIG 16 FUEL PUMP (DF140WT:682149%,DF140WZ:680234%)FIG 17 WATER PUMP (DF140T/Z)FIG 18 WATER PUMP (DF140WT/WZ)FIG 19 WATER PUMP (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL FILTER FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (*)FIG 27 CLUTCH SHAFT (*)FIG 28 CLUTCH ROD (DF140T/WT)FIG 29 CLUTCH ROD (DF140T/WT:682149%)FIG 30 CLUTCH ROD (DF140Z/WZ)FIG 31 CLUTCH ROD (DF140Z/WZ:680234%)FIG 32 TRANSMISSION (DF140T/WT)FIG 33 TRANSMISSION (DF140Z/WZ COUNTER ROTATION)FIG 34 STARTING MOTOR FIG 35 MAGNETO FIG 36 RECTIFIER FIG 37 IGNITION COIL FIG 38 SENSOR FIG 39 HARNESS FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:02,03)FIG 41 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 42 CLAMP BRACKET FIG 43 SWIVEL BRACKET FIG 44 TRIM CYLINDER FIG 45 PTT MOTOR FIG 46 ENGINE HOLDER FIG 47 ENGINE HOLDER (DF140T/WT:682149%,DF140Z/WZ:680234%)FIG 48 DRIVE SHAFT HOUSING FIG 49 GEAR CASE (DF140T/WT)FIG 50 GEAR CASE (DF140Z/WZ COUNTER ROTATION)FIG 51 SIDE COVER FIG 52 ENGINE COVER (MODEL:02)FIG 53 ENGINE COVER (MODEL:03%09)FIG 53A ENGINE COVER (MODEL:10%)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:02,03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (DF140T MODEL:02%04)FIG 65 OPT:SWITCH (DF140Z COUNTER ROTATION MODEL:02%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:02%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 71 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 72 OPT:GASKET SET

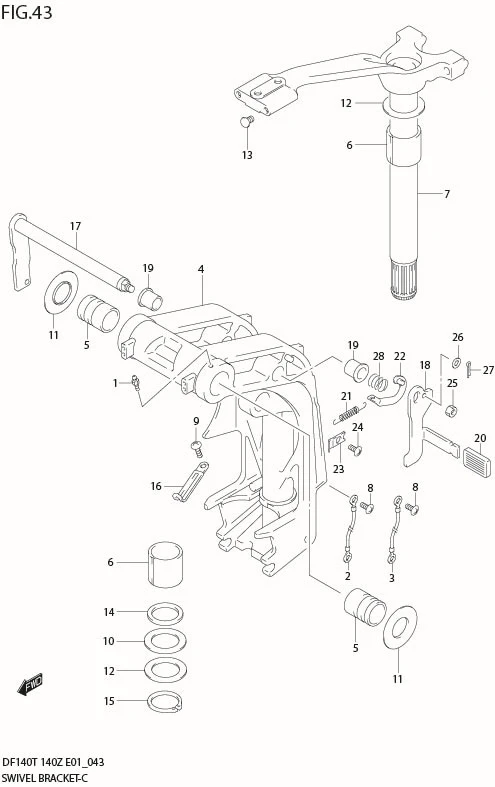

FIG 43 SWIVEL BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	22511-99011-000	NIPPLE, GREASE	4	Rp39.500	DF140T:682149%
1-1	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	5	Rp39.500
2	36894-95201-000	LEAD (CLAMP TO SWIVEL)	1	Rp110.500
3	36894-87D00-000	LEAD (SWIVEL TO MOUNT BRKT)	1	Rp98.500
4-1	43111-92J01-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	TYPE:L
4-2	43111-92J20-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	TYPE:L MODEL:04%06
4-3	43111-92J40-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	TYPE:L
4-4	43111-92J11-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.002.500	TYPE:X
4-5	43111-92J30-0EP	BRACKET, SWIVEL (BLACK)	1	Rp7.918.500	TYPE:X MODEL:04%06
4-6	43111-92J50-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.002.500	TYPE:X
5-2	43211-93J11-000 SUB: 43211-93J00-000	BUSH, CLAMP SHAFT SWIVEL	2	Rp75.000	DF140T:682149%
5-1	43211-87D00-000	BUSH, CLAMP SHAFT SWIVEL	2	Rp80.500
6	43711-97E11-000 SUB: 43711-97E00-000	BUSH, STEERING	2	Rp106.500
7-1	43750-90J00-0EP	BRACKET, STEERING (BLACK)	1	Rp8.052.500	TYPE:L
7-2	43750-90J61-0EP SUB: 43750-90J22-0EP	BRACKET, STEERING (BLACK)	1	Rp7.281.000	TYPE:L
7-3	43750-90J11-0EP	BRACKET, STEERING (BLACK)	1	Rp8.488.500	TYPE:X
7-4	43750-90J71-0EP SUB: 43750-90J32-0EP	BRACKET, STEERING (BLACK)	1	Rp7.683.500	TYPE:X
8	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	3	Rp14.000	?09125-05050
9	09125-06063-000	SCREW (6X10)	2	Rp15.000
10	09160-39001-000	WASHER (39.5X64X1.0)	2	Rp23.000
11	09169-28003-000	WASHER	2	Rp34.000
12	09181-39001-000	SHIM (39.5X64X0.3)	4	Rp31.500
13	09250-10001-000	PLUG	2	Rp11.000
14	09282-39001-000	SEAL, OIL	1	Rp53.000
15	09380-38003-000	CIRCLIP	1	Rp50.500
16	DISCONTINUE SUB: 29404-93J10-000	CLAMP	2	-	?09404-06432
17	41220-95E13-000	LEVER, TILT LOCK	1	Rp964.500
18	41221-95E40-000	LEVER, TILT LOCK PORT	1	Rp272.500
19	41224-95E01-000	BUSH, TILT STOPPER ROD	2	Rp41.500
20	41225-94400-000	RUBBER, TILT LOCK LEVER	1	Rp30.000
21	DISCONTINUE SUB: 41228-90J00-000	SPRING, TILT LOCK LEVER	1	-
22	41230-95E00-000	LINK, TILT LOCK LEVER	1	Rp199.000
23	41233-95E10-000	BRACKET, TILT LOCK SPRING	1	Rp81.000
24	09125-06063-000	SCREW (6X10)	1	Rp15.000
25	09140-10032-000	NUT	1	Rp15.000
26	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
27	09204-01006-000	PIN, COTTER	1	Rp14.000
28	09440-19028-000	SPRING	1	Rp24.500
